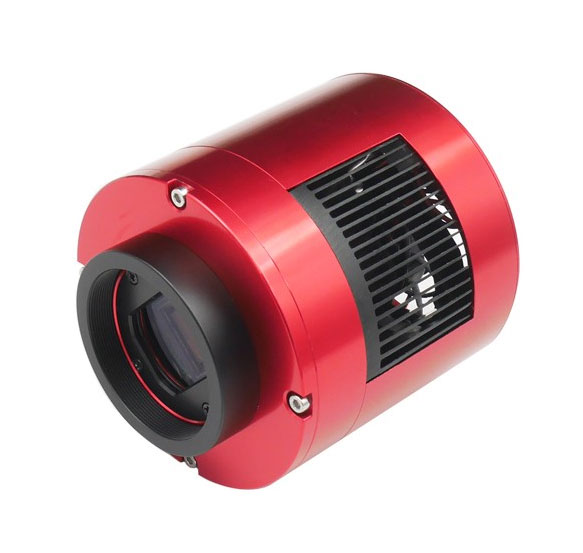

ZWO ASI2600MC-Pro
The ZWO ASI2600MC-Pro is a cooled USB3 APC-S format camera with a Sony back-illuminated 16bit and 14 stops of dynamic range color chip with zero amp glow. The ASI2600MC Pro uses APS-C format, the sensor length and width are 23.5mm * 15.7mm and the diagonal is 28.3mm. This is a 26MP camera with a small pixel size of 3.76um that can accommodate a large well depth of 50ke.
Specifications
- Sensor: IMX571 Back-Illuminated CMOS
- Camera Connection: Female M54 x 0.75
- Color or Monochrome: Color
- Cooling: Cooled
- Resolution: 6248 x 4176
- Pixel Size: 3.76 μm
- Sensor Size: 23.5 mm x 15.7 mm
- Max FPS at Full Resolution: 3.51 FPS
- Read Noise: 1.0e-3.3e
- QE Peak: >80%
- Full Well: 50,000 e-
- Exposure Range: 32 μs - 2000 s
- ADC: 16 bit
ZWO ASI2600MC-Pro

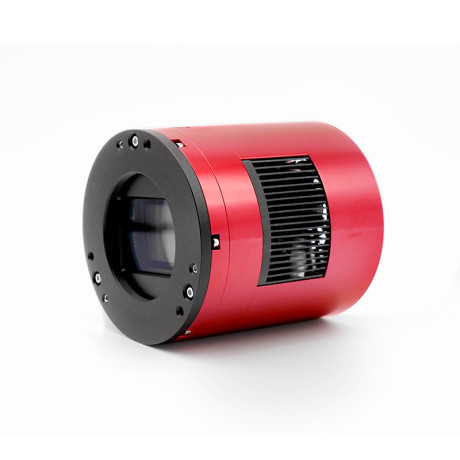

ZWO ASI6200MC-Pro and ZWO ASI6200MM-Pro
The ZWO ASI6200MC-Pro is a cooled USB3 full-frame format camera with a Sony back-illuminated 16bit and 14 stops of dynamic range color or monochrome chip with zero amp glow. The ASI6200MC-Pro uses full frame format, the sensor length and width are 36mm * 24mm and the diagonal is 43.3mm. This is a 62MP camera with a small pixel size of 3.76um that can accommodate a large well depth of 51.4ke.
Specifications
- ADC: 16 bit
- Back Focus: 17.5 mm
- Camera Connection: Female M54 x 0.75
- Color or Monochrome: Color and Monochrome available
- Cooling: Cooled
- Delta T: 60°C Below Ambient
- Dynamic Range: 13.9 Stops
- Full Resolution Frame Rate: 9 fps
- Full Well: 51 ke
- Megapixels: 61.2
- Peak QE: 80%
- Pixel Array: 9576 x 6388
- Pixel Size: 3.75 microns
- Power Consumption: 12V 3A
- Read Noise: 3.5e
- Sensor: IMX455
ZWO ASI6200MC-Pro and ZWO ASI6200MM-Pro
