Finger Lakes Instruments Hyperion HP8300 Front Illuminated CCD

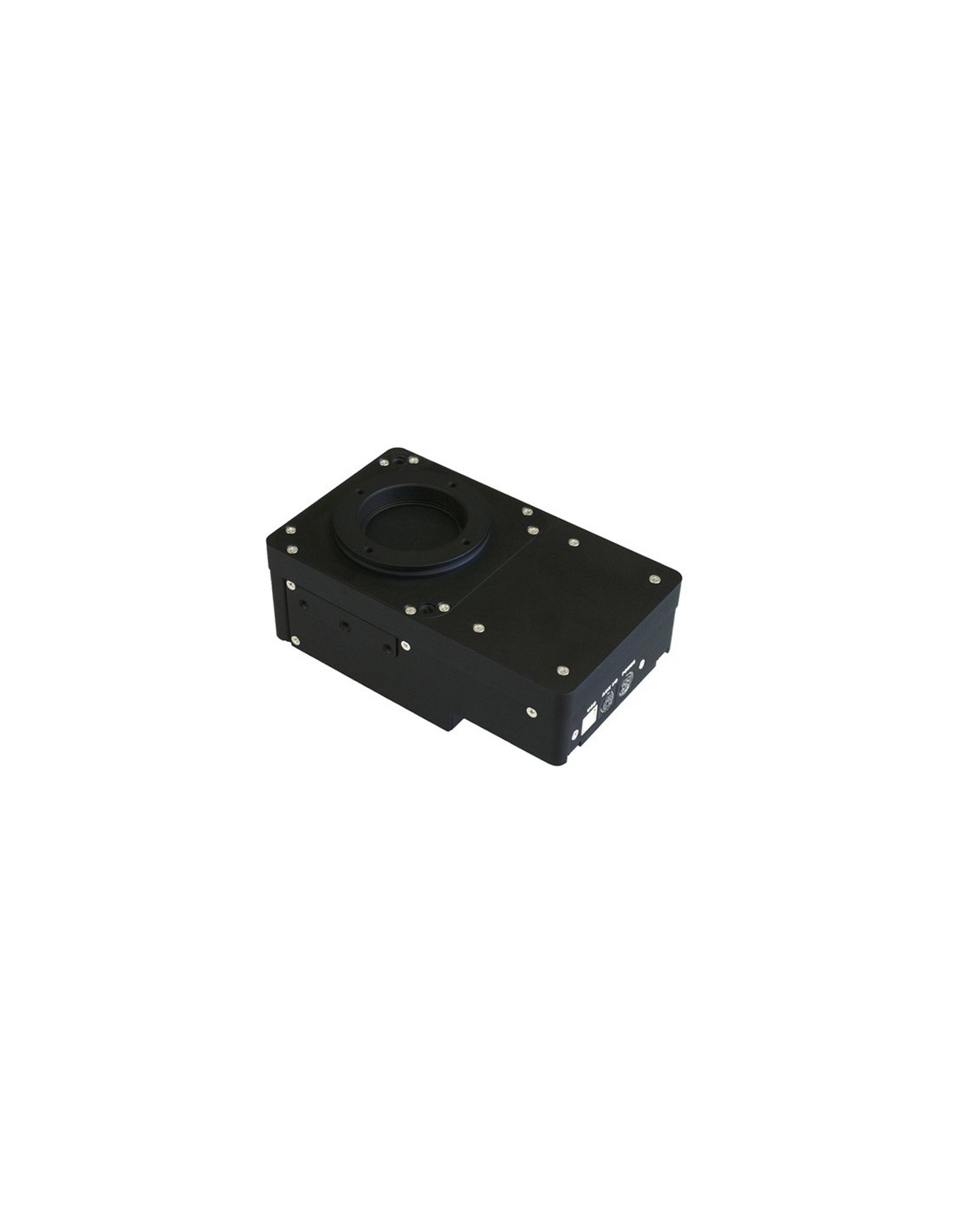

Finger Lakes Instruments Hyperion HP8300 Front Illuminated Camera

The Hyperion Cooled CCD camera is designed for applications that require a thin profile without a sacrifice in performance or image quality. The Hyperion offers deep sensor cooling, high frame rates, low-noise and can accept a wide range of sensors including monochrome, front-illuminated, back-illuminated, interline and color. Available in a liquid or air cooled version.
Ideal for OEM, life science, and astronomy applications.
Sensor Cooling up to 65°C below ambient (air cooled)
Air or Liquid Cooling Available
Interline sensor operation at 12 MHz (16-bit)
Full frame sensor operation up to 12 MHz (16-bit)
Dual Super Coated AR Window
Heavy weight performance in a 2.8 lbs package
Liquid or Air Cooled base
RBI Anti-Ghosting Technology standard
Video mode with interline sensors - focus and center images live!
Thin Front to Back Design
Reaches operating temperatures in 5 minutes!

HP8300 Sensor Specs
Sensor: Truesense KAF-8300
Pixels: 3326 x 2504
Pixel Size: 5.4 ?m
Full Well Capacity: 25,500 e-
Sensor Diagonal: 22.5 mm
Video Size (inch) : 1.4
Anti Blooming: 1000x
Color Options: Monochrome or Color
CCD Type: Front Illuminated
CCD Grades: Standard
HP8300 Performance
Digitization Speed: 8 MHz
Typical System Noise: 8 e- RMS @ 8 MHz
Typical Maximum Cooling: 60ºC Below Ambient
Typical Dark Current: <0.003 e-/pixel/sec @ -35ºC
CCD to Flange Distance:
Lens Mounts: F-Mount
Available Shutters: 42 mm, 45 mm
All Hyperion Cameras
Housing Dimensions: 3.70 x 3.70 x 4.77 (94 x 94 x 121.3)
Weight: 4.0 lbs. (Liquid Cooled-2.8 lbs.)
Interface: USB 2.0>
Temperature Stability: 0.1ºC
Non linearity: <1%
Remote Triggering: Standard
Shutter MTBF: 1.000.000
Power: 12V (100-240V AC to 12V DC power supply included) . With TEC off: <1A. TEC at 100%: 4.4A. (Optional Electromechanical Shutter open: 4A pulse for 100msec. Shutter held open, add 0.22A.)
Environment: -30ºC - 45ºC | 10% - 90% Relative Humidity
