Finger Lakes Instruments Hyperion HPx285 Interline Illuminated Mono CCD

Finger Lakes Instruments Hyperion HPx285 Interline Illuminated Monochrome CCD

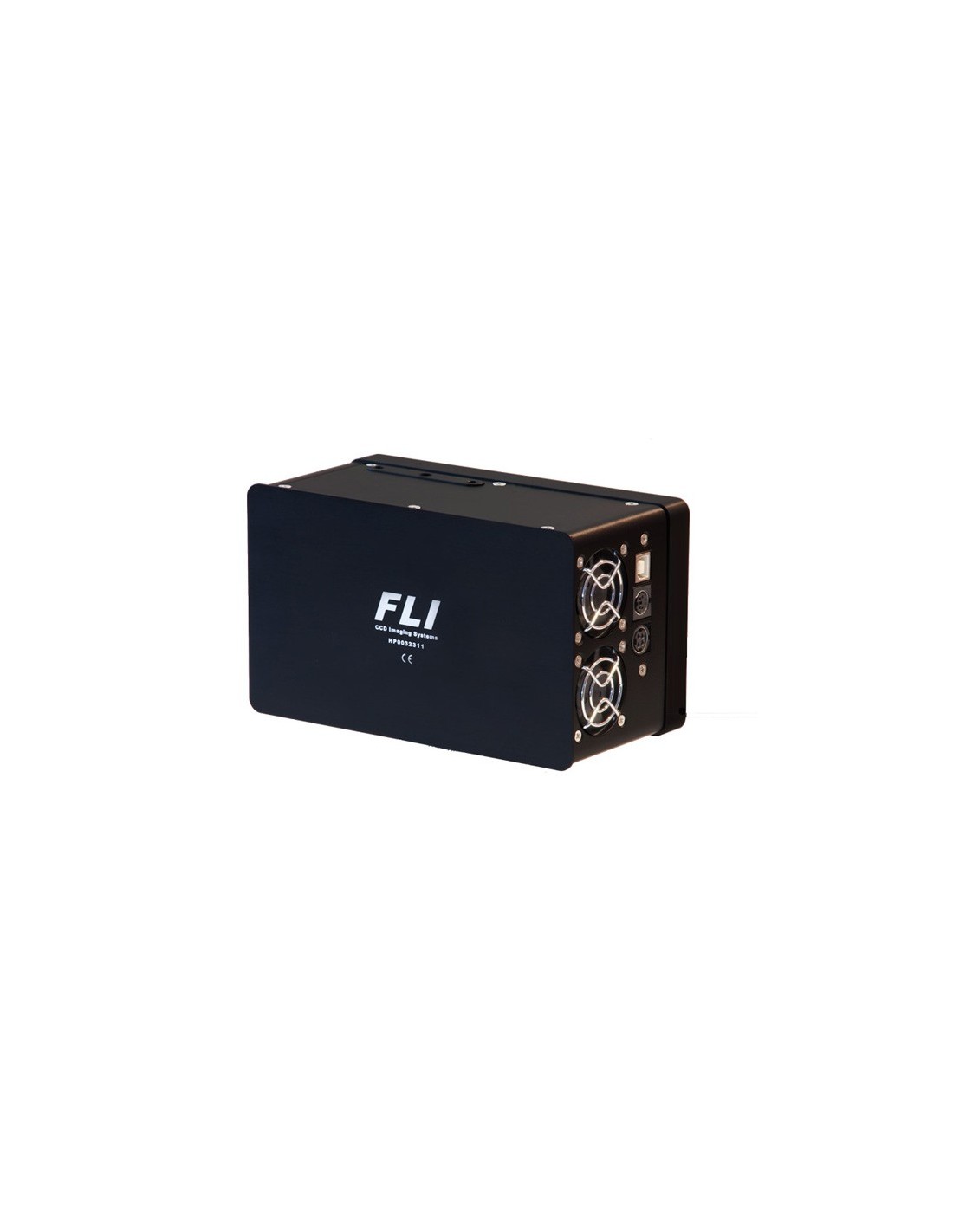

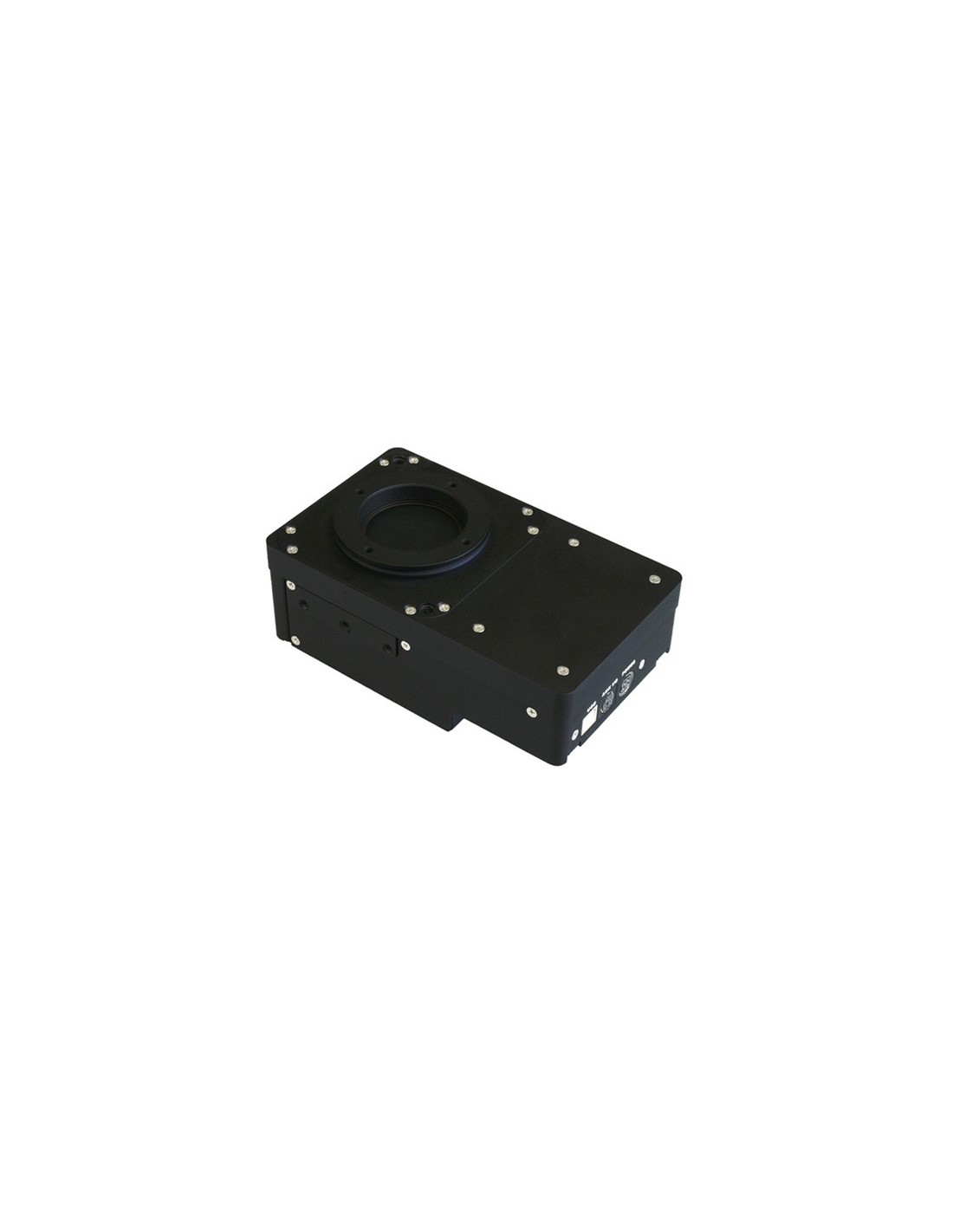

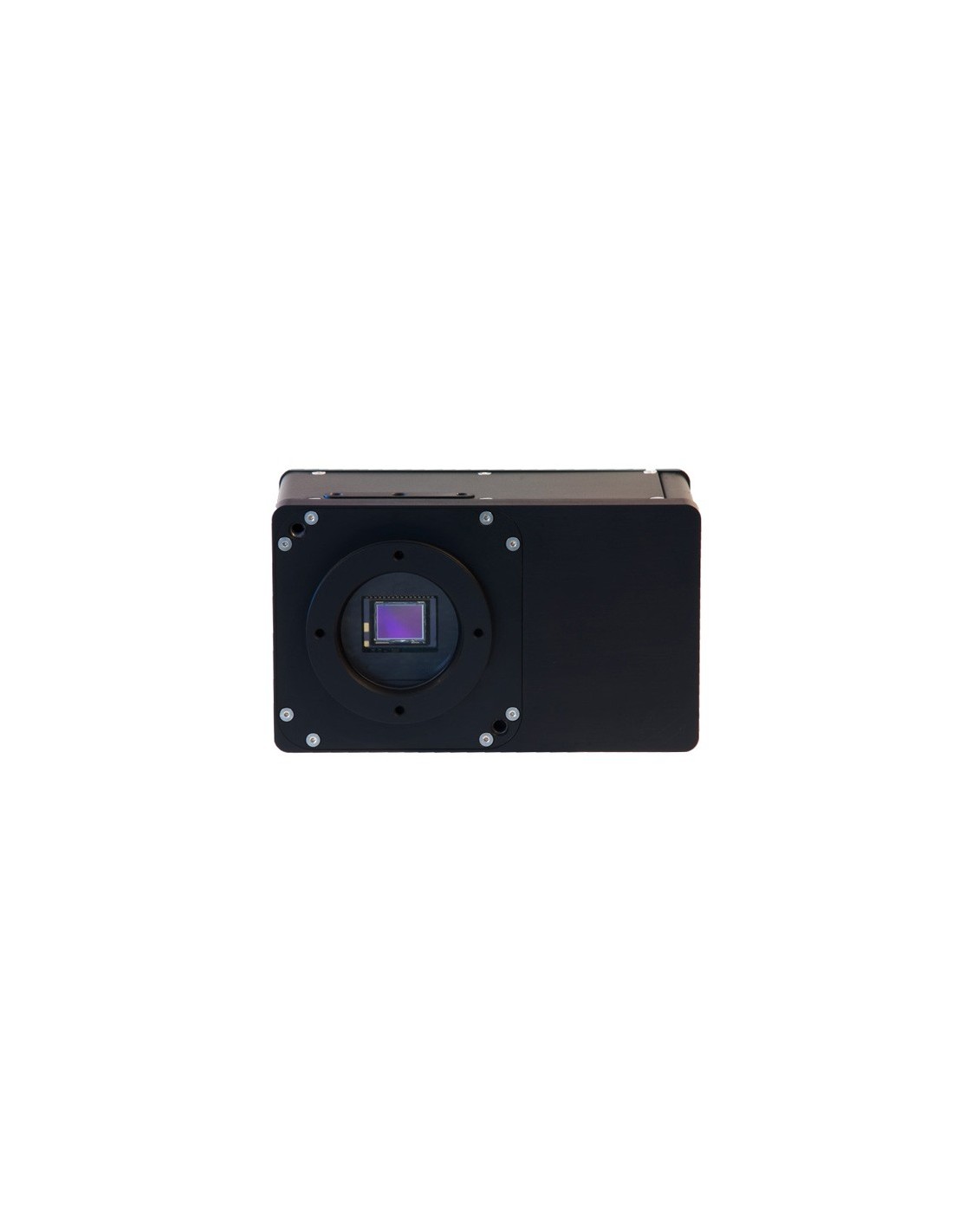

The Hyperion Cooled CCD camera is designed for applications that require a thin profile without a sacrifice in performance or image quality. The Hyperion offers deep sensor cooling, high frame rates, low-noise and can accept a wide range of sensors including monochrome, front-illuminated, back-illuminated, interline and color. Available in a liquid or air cooled version.
Ideal for OEM, life science, and astronomy applications.
Sensor Cooling up to 65°C below ambient (air cooled)
Air or Liquid Cooling Available
Interline sensor operation at 12 MHz (16-bit)
Full frame sensor operation up to 12 MHz (16-bit)
Dual Super Coated AR Window
Heavy weight performance in a 2.8 lbs package

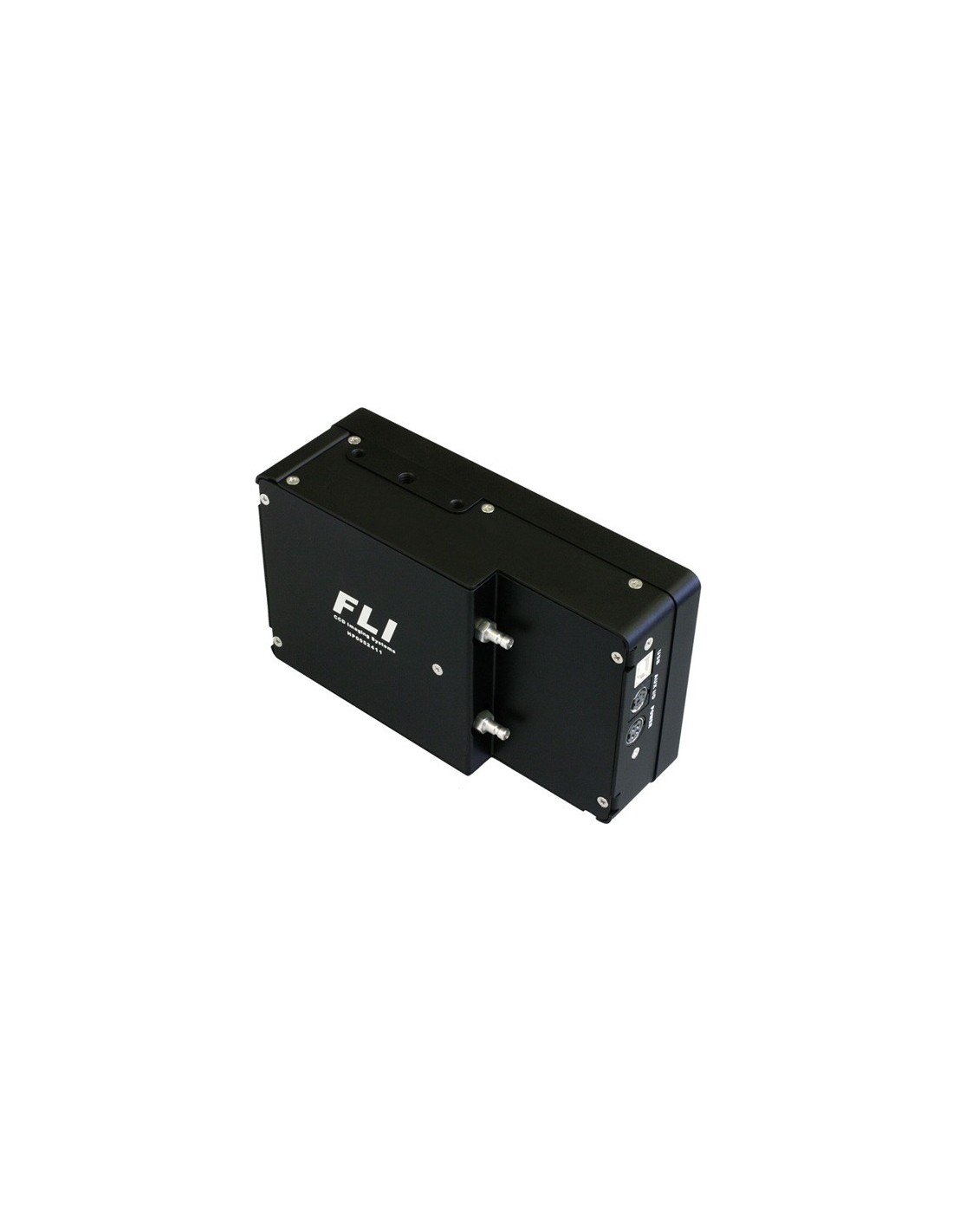

Liquid or Air Cooled base
RBI Anti-Ghosting Technology standard
Video mode with interline sensors - focus and center images live!
Thin Front to Back Design
Reaches operating temperatures in 5 minutes!

HPx285 Sensor Specs
Sensor: Sony ICX285AL
Pixels: 1434 x 1050
Pixel Size: 6.45 ?m
Full Well Capacity: 18.000 e-
Sensor Diagonal: 11.2 mm
Video Size (inch) : 0.7
Anti Blooming: Yes
Color Options: Monochrome
CCD Type: Interline Transfer
CCD Grades: Standard
HPx285 Performance
Digitization Speed: 7 MHz
Typical System Noise: 4.5 e- RMS @ 7 MHz
Typical Maximum Cooling: 60ºC Below Ambient
Typical Dark Current: <0.002 e-/pixel/sec @ -35ºC
CCD to Flange Distance:
Lens Mounts: C-Mount, F-Mount
Available Shutters: 25mm (sensor has an electronic shutter)
All Hyperion Cameras
Housing Dimensions: 3.70 x 3.70 x 4.77 (94 x 94 x 121.3)
Weight:
Interface: USB 2.0>
Temperature Stability: 0.1ºC
Non linearity: <1%
Remote Triggering: Standard
Shutter MTBF: 1.000.000
Power: 12V (100-240V AC to 12V DC power supply included) . With TEC off: <1A. TEC at 100%: 4.4A. (Optional Electromechanical Shutter open: 4A pulse for 100msec. Shutter held open, add 0.22A.)
Environment: -30ºC - 45ºC | 10% - 90% Relative Humidity
