Finger Lakes Instruments ProLine PL16050 Interline CCD - Grade 1 No shutter

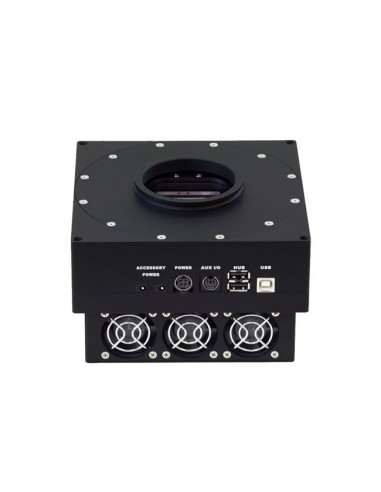

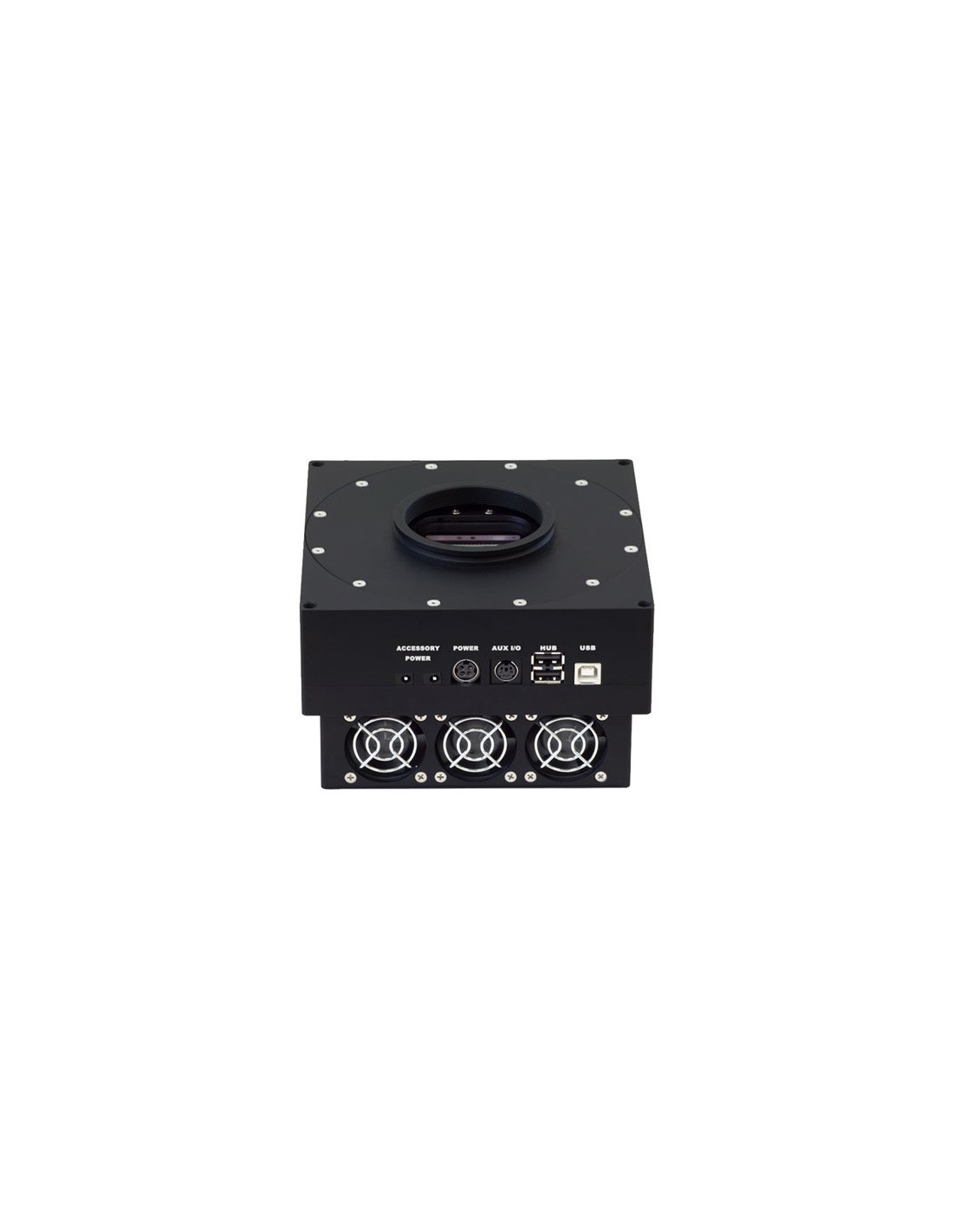

Finger Lakes Instruments ProLine PL16050 Interline Camera

ProLine sets the standards in key performance areas that include: Download Speeds, Cooling, Low Noise Operation, Anti-Ghosting Technology, Image Quality, and Linearity.

Sensor Cooling up to 70°C below ambient (air cooled)
Large Format CCDs up to 50mm x 50mm
Interline Sensor Operation at 12 MHz (16-bit)
Full Frame Sensor Operation up to 14 MHz (16-bit)
Separate On-Board A2D for Lowest Noise (1 MHz)
Excellent Linearity
Dual Super Coated AR Window
Liquid or Air Cooled base
RBI Anti-Ghosting Technology standard
Video Mode with Interline Sensors
Reaches Operating Temperatures in 5 Minutes!

PL16050 Sensor Specs
Sensor: Truesense KAI-16050
Pixels: 4896 x 3264
Pixel Size: 5.5 ?m
Full Well Capacity: 20.000 e-
Sensor Diagonal: 32.3mm mm
Video Size (inch) : 2.02
Anti Blooming: 300x
Color Options: Monochrome or Color
CCD Type: Interline Transfer
CCD Grades: 1 or 2
PL16050 Performance
Digitization Speed: 4 MHz & 12 MHz
Typical System Noise: 8e- RMS @ 4 MHz; 10e- RMS @ 12 MHz
Typical Maximum Cooling: 55ºC Below Ambient
Typical Dark Current : <0.00015 electrons/pixel/sec @ -35ºC
Non linearity: <1%
Lens Mounts: F-Mount
Available Shutters: Electronic shutter standard; optional 65 mm
All ProLine Cameras
Housing Dimensions: 6.2 x 6.2 x 3.8 inches (15.7 15.7 x 9.6 cm)
Focal Plane to Faceplate: 21.3mm (optical)
Weight: 5.6 lbs. (Liquid Cooled - 4.6 lbs.)
Interface: USB 2.0
Temperature Stability: 0.1ºC
Remote Triggering: Standard
Shutter MTBF: 1.000.000
Power: 12V (100-240V AC to 12V DC power supply included) . With TEC off: <1A. TEC at 100%: 4.4A. (Optional Electromechanical Shutter open: 4A pulse for 100msec. Shutter held open, add 0.22A.)
Environment: -30ºC - 45ºC | 10% - 90% Relative Humidity
