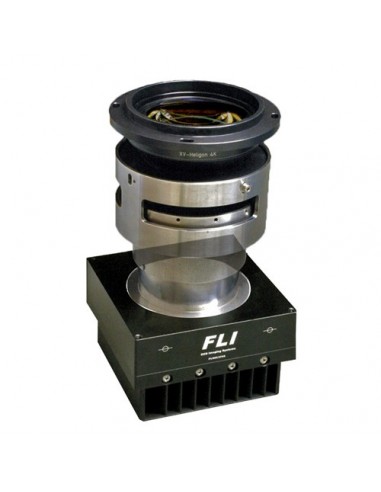

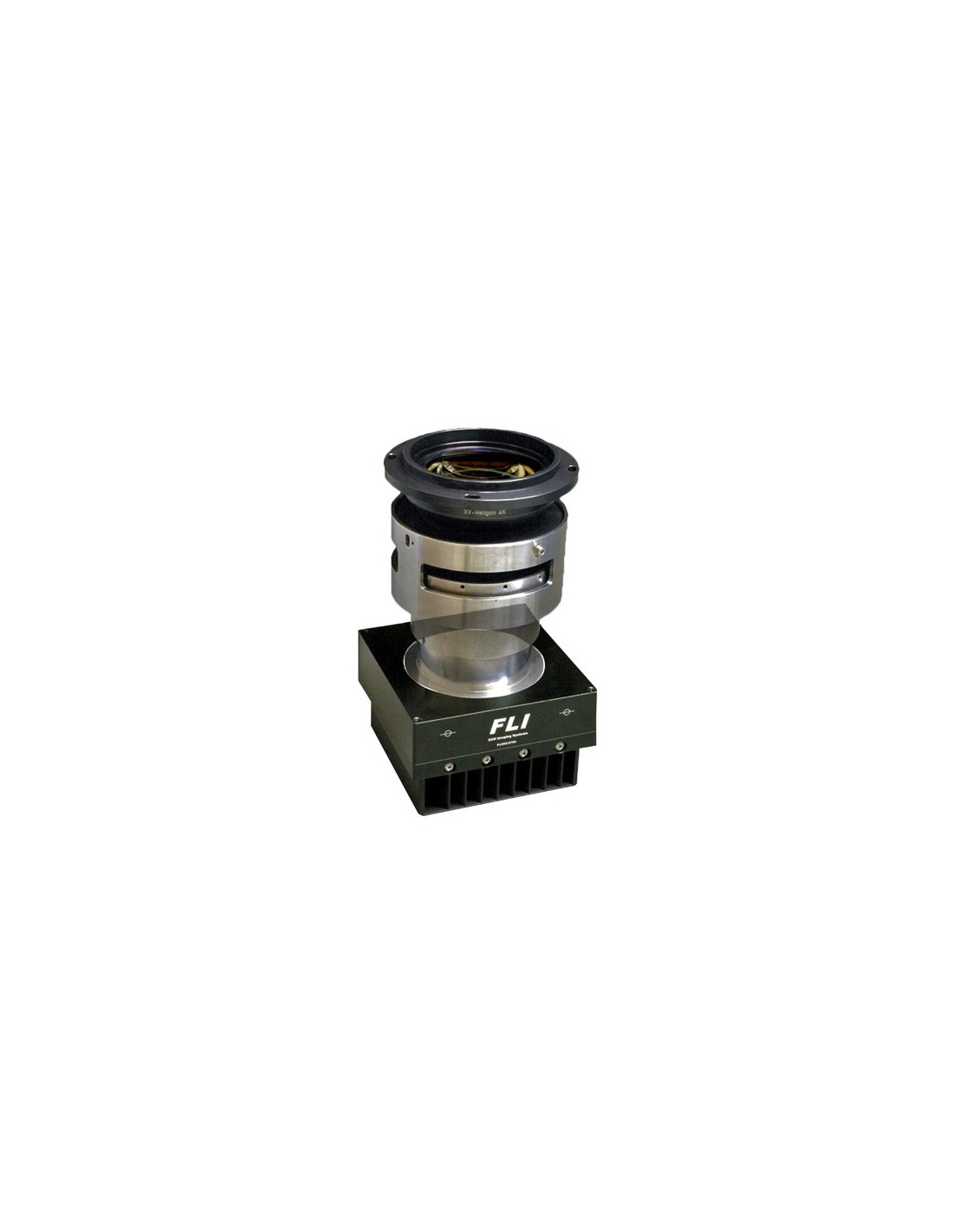

Finger Lakes Instruments ProLine PL50100 Front Illuminated Camera

Finger Lakes Instruments ProLine PL50100 Front Illuminated Camera

ProLine sets the standards in key performance areas that include: Download Speeds, Cooling, Low Noise Operation, Anti-Ghosting Technology, Image Quality, and Linearity.

Sensor Cooling up to 70°C below ambient (air cooled)
Large Format CCDs up to 50mm x 50mm
Interline Sensor Operation at 12 MHz (16-bit)
Full Frame Sensor Operation up to 14 MHz (16-bit)
Separate On-Board A2D for Lowest Noise (1 MHz)
Excellent Linearity
Dual Super Coated AR Window
Liquid or Air Cooled base
RBI Anti-Ghosting Technology standard
Video Mode with Interline Sensors
Reaches Operating Temperatures in 5 Minutes!

PL50100 Sensor Specs
Sensor: Truesense KAF-50100
Pixels: 8176 x 6132
Pixel Size: 6 ?m
Full Well Capacity: 40,300 e-
Sensor Diagonal: 61.3 mm
Video Size (inch) : 3.8
Anti Blooming: 800x
Color Options: Monochrome or Color
CCD Type: Front Illuminated
CCD Grades: Standard
PL50100 Performance
Digitization Speed: 2 channels at 7 MHz each
Typical System Noise: 11.5 e- RMS @ 7 MHz
Typical Maximum Cooling: 50ºC Below Ambient
Typical Dark Current: <0.003 e-/pixel/sec @ -30ºC
Non linearity: <1%
Lens Mounts: F-Mount
Available Shutters: 65 mm
All ProLine Cameras
Housing Dimensions: 6.2 x 6.2 x 3.8 (157.48 x 157.48 x 96.52)
Focal Plane to Faceplate: 21.3mm (optical)
Weight: 5.6 lbs. (Liquid Cooled - 4.6 lbs.)
Interface: USB 2.0
Temperature Stability: 0.1ºC
Remote Triggering: Standard
Shutter MTBF: 1.000.000
Power: 12V (100-240V AC to 12V DC power supply included) . With TEC off: <1A. TEC at 100%: 4.4A. (Optional Electromechanical Shutter open: 4A pulse for 100msec. Shutter held open, add 0.22A.)
Environment: -30ºC - 45ºC | 10% - 90% Relative Humidity
