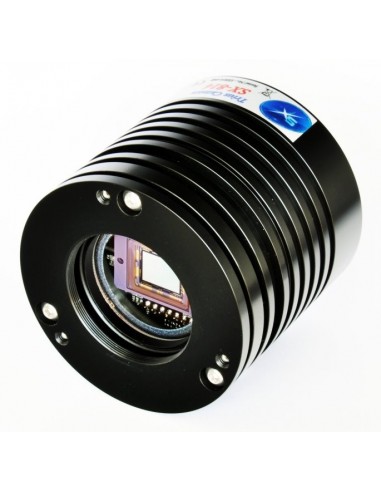

Starlight Xpress Trius 825 Mono CCD camera

Starlight Xpress Trius 825 Mono CCD camera

Starlight Xpress Trius-SX825 - monochrome CCD camera, 9mm x 6.7 mm, 6.45 µm

The monochrome Trius-SX825 is the successor of the SX9 and offers a higher QE and a lower dark noise.

Starlight Xpress has always been renowned for small, compact, innovative designs, along with excellent build quality. The new Trius range of deep-sky, cooled CCD cameras has just taken these values to a whole new level.

In addition to the already super low-noise performance of the previous generations of SXV, SXVF, & SXVR cameras, the NewsTrius range is even better, whilst still offering fast download times.

• Sensor size 9mm x 6.7 mm, 11.2mm diagonal
• Pixel size 6.45 µm
• 1.45 MPixels
• 77% QE
• Readout noise: <7 e- RMS, typically 5 e-
• Darkframes redundant
• built-in USB-2.0 Hub, 3-port

Specification:

Specifications:

• Sensor type: Sony ICX825 ExView HAD CCD II
• Sensor design: Interline-transfer CCD
• Sensor dimensions: 9 mm x 6.7 mm
• Sensor diagonal: 11.2 mm
• Pixel number: 1.4 MPixel active
• Pixel array: 1360 x 1024 Pixels
• Pixel size: 6.45 µm x 6.45 µm
• Readout Noise: <7 e- RMS, typical 5 e-
• Data Format: 16 bits
• Download time: 2 s
• Cooling: two stage TE, 55 K below environment
• Recooling: activ, 2 throttled 40 mm fans
• Connection: T2, 2", 1.25"
• Distance T2-thread to sensor: approx. 17 mm
• Dimensions H x W x L: 75 mm x 92 mm x 110/76 mm (1.25"/T2)
• Weight: ca. 500 g
