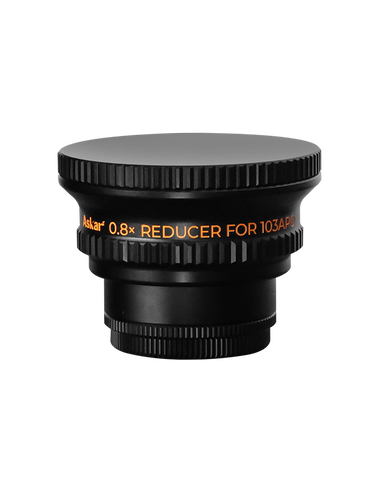

Askar Full-frame 0.8x Reducer for Askar 103APO
ASK_0.8RED103APO
315,00 €
Impuestos incluidos
The 0.8x reducer can bring Askar 103APO's focal ratio down to F5.4. This is a standard reducer with field flattening capabilities as well. A shorter focal ratio allows the OTA to have a wider field of view and faster exposure times, making it suitable for capturing large areas of nebulae, star clusters, and faint, fast-moving celestial objects.
Tiene una pregunta acerca de este producto?
Must-have accessories
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The Askar 103 APO comes with three optional premium accessories, a 1.0x flattener, a 0.8x reducer, and a 0.6x reducer. Introduced here is the 0.8x reducer which is optimized for the Askar 103APO and can provide more possibilities for telescope use.
The 0.8x reducer can bring Askar 103APO's focal ratio down to F5.4. This is a standard reducer with field flattening capabilities as well. A shorter focal ratio allows the OTA to have a wider field of view and faster exposure times, making it suitable for capturing large areas of nebulae, star clusters, and faint, fast-moving celestial objects.
The 0.8x reducer adopts a triplet design and supports a 44mm full-frame image circle. The overall weight is 0.48kg. The back focus from the M48 thread is a standard 55mm. The front thread is M84*1. At the camera end, it is equipped with M54*0.75 and M48*0.75 two sizes of adapters, which are convenient for connection. At the same time, it has a built-in M48*0.75 2-inch filter thread, which can be directly installed and used. The overall CNC machined, both end threaded metal caps prevent ash when not in use.
Specifications
|
0.8x Reducer Parameters |
||
|
（After attaching）103APO Focal length |
560.32mm |
|
|
(After attaching) 103APO Focal ratio |
f/5.44 |
|
|
Lens Number |
Triplet design |
|
|
Back Focus |
55mm (from the base of M48 male thread) |
|
|
Weight |
0.48kg |
|
|
Rear-end thread type |
M54×0.75 |
|
- Correction Optics Type
- Focal Reducer*~Field Flattener
- -250,00 €
- -26,00 €
- -26,00 €
Askar, based in China, specializes in producing innovative telescopes and astrophotography equipment, appealing to a wide range of astronomers. Their focus on compact and portable designs increases accessibility for users aiming to explore astronomy more comfortably.
