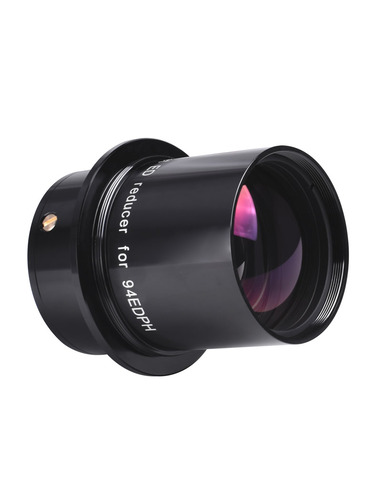

Sharpstar Reducer/Flattener F4.4 for 76EDPH and 94EDPH triplet APO

The 2.5" 94EDPH f/4.4 full-frame reducer is dedicated for Sharpstar 94EDPH and 76 EDPH astrograph. At one end of the reducer, there is M74×1 thread, tapped for the connection to the 94EDPH's reducer and at the other end the reducer, there is M48×0.75 thread for the connection of most stock cameras. The back focus is 55mm after the attachment of a camera.

The reducer flattener is designed with a four-element air-spaced lens structure, supporting full-frame imaging and the image circle reaches 50mm, effectively controlling unwanted vignette. The practical focal ratio of the Sharpstar 94EDPH when used with this reducer is f/4.4, and the focal length can be shortened to 414mm. It's preferred by many deep-sky astrophotographers.

Another improvement is that the f/4.4 reducer is also designed with a 360-degree rotator, which is of great convenience for composition when imaging the deep-sky objects. The above-mentioned M48 thread is suitable for the connection for standard 2" filters.

Specifications

• Application：for 94EDPH and 76EDPH
• Focal ratio：f/4.4
• Image circle：50mm
• Lens：four-element air-spaced structure
• Outer diameter：88mm
• Back focus：55mm
• Length：105mm
• Coating：full-surface multi-layer coatings
• Weight：0.67kg
• 0,8x flattener Reducer for refractors
• Design: 4-element design with one ED element
• Connection telescope side: M74x1 Male thread
• Connection camera side: M48x0.75 male thread

The sharpstar 94EDPH F4,4 reducer flattener can also be used on the 76EDPH.

The reducer can reduce the original focal ratio to f/4.4, supporting full-frame imaging, opening up for our customers more possibilities in exploring the universe.

Sharpstar 94EDPH is a ideal choice,  if you are looking for a large-aperture, fast-focal-ratio, quality and lightweight APO triplet telescope , this APO will be yours.
