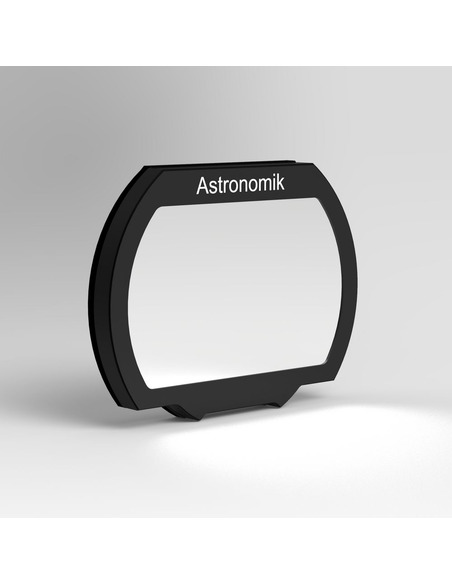

Astronomik ProPlanet 807 Filter Clip-Filter Sony alpha 7

Clip Filter for Sony Alpha 7 and Alpha 9

We are proud to unveil the new Clip-Filter for Sony Alpha 7 and Alpha 9 cameras:

After a long period of prototyping and development we are now able to offer you Clip-Filters for the amazing Sony Alpha bodies. The filters are held in place save and secure with no stress to the high quality glass and only minimal obstruction in the corners. The Clip-Filter are designed and optimized to be used with normal lenses and with telescopes as well.

Compatibility:

• The Clip-Filter are sucessfully tested with all Sony Alpha 7 bodies (7, 7r and 7s in Mk I, MkII and Mk III versions) and the Sony Alpha 9 body
• Sony Alpha 7R IV: Not compatible
• Alpha 58, 68, 77, 99, 6500: Not compatible
• All Sony DSLR Bodies with the A-Bajonet: Not compatibel

A short guide selecting the right filter for you:
Lot´s of customers are overwhelmed by the vast number of filters offered by Astronomik. Due to that we give you a short guide how to select the right filter for your application below.

Our normal recommendation for the "First Filter" is the Astronomik CLS filter. The CLS blocks all unwanted artifical light pollution and natural airglow and gives you a dark background in your images. When using this filter you may expose much longer than without, so you will be able to pick much fainter structures and objects. The filter is designed in such a way that all objects are given in their natural colors. -They would look the same if your human eye would be much more sensitive!
Important: The standard CLS has no built-in IR-blocker. In case your camera has been modified for Astrophotography, please take the CLS-CCD which has a built-in IR-blocker!

The CLS is the fist choice for any applications like Night-scape photography and Time Lapse movies!

If you have to work under a heavy light polluted sky, the UHC is a good choice too: It´s transmission curve is very tight. It gives you the light from the Hß, OIII, H-alpha and SII lines in one single exposure. The reduction of light pollution is much stronger than the CLS/CLS-CCD, but the filter will work for gas nebulas only! Any galaxies and open or globular clusters are filtered out! You will get "false colors" with the UHC, no natural colors like the CLS/CLS-CCD.

If you want to die deeper into Astrophotography with your Sony, you should think about a set of emission line filters centered on OIII, H-alpha and SII. All three are available either with 12nm or 6nm bandwidth. With these filters you can do ultra-deep images even under the worst sky you can imagine plus the full moon high up in the sky! Imaging possibilties are nearly unlimited with these filters!
The emission line filters isolate the light from a very tight range of wavelengths. So you don´t get any color information! if you want to create color images (false color like images from the HST), you will need all three filters to mix the three channels into a final color image.
However the H-alpha filter is a great using it alone: Data can be processed to splendid greyscale images!

If you own a modified camera, you should consider the OWB filter: OWB is short for "Original white Balance", and that´s what the filter does: It gives you back the normal color reproduction from a un-modified camera. When using the OWB you may use your modified camera for normal daylight-photography again, without the need for color-correcting each image afterwards!

Ideal addition to the Astronomik ProPlanet IR 742 for imaging the moon and planets, with telescopes larger then 10" (250mm) when the seeing is poor.

This filter is an ideal complement to the ProPlanet IR 742 for use with converted DSLR cameras, CCD cameras and Webcams. The effects of seeing are distinctly reduced. It is your entry into previously unknown dimensions of photography of the moon and the planets.

The ProPlanet IR 807 only allows infrared light with wavelengths of more than 807 nm to pass. In this wavelength range the effects of seeing are significantly lower than in the visible spectrum of the human eye. This allows much sharper images than are usually obtained from your device and location. Another advantage is that the sky background of advanced dawn is dark and even allows photography of planets and moon at daylight.

Main use

The Astronomik ProPlanet IR 807 cuts off the visible part of the spectrum and allows the light of wavelengths longer then 807nm to pass. Due to this behavior the part of the spectrum that is most sensitive to bad seeing is rejected. This approach does a big improvement to the imaging of planets and the moon. The image is more steady than the image in the visible light.

Other uses

• The Astronomik ProPlanet IR 807 is designed to be an addition to the Astronomik ProPlanet IR 742, if the seeing is extremely bad and a larger telescope is used.
• For most cameras the exposure times doubles, compared to the Astronomik ProPlanet IR 742 or imaging in visible light, if the Astronomik ProPlanet IR 807 is used.
• Darkens the background during twilight.
• Imaging of bright planets, stars and comets by day.
• Imaging of young stars in dust clouds and stellar nurseries.

Alternatives

If the seeing is not so bad or if the telescope is smaller than 10" (250mm) we recommend the use of the Astronomik ProPlanet IR 742.

Suitability

• Visual observation (dark skies): Unsuitable, the eye is insensitive at this spectrum
• Visual observation (urban skies): Unsuitable, the eye is insensitive at this spectrum
• Film photography: Unsuitable
• CCD photography: Reasonable, for special IR photography (as chlorophyll)
• DSLR photography (original): Unsuitable
• DSLR photography (astro modified): Unsuitable
• DSLR photography (MC modified): Good, for IR daylight photography, longer exposure time
• Webcam / Video (Planets): Very good, rejects problems with seeing, particularly with telescopes larger 250 mm aperture
• Webcam / Video (Deep Sky): Very good, rejects problems with seeing, particularly with telescopes larger 250 mm aperture

Technical Data

• more then 97% transmission for wavelengths of 807nm to 1100nm
• blocking of wavelengths between 350nm and 790nm
• Parfocal with other Astronomik filters
• Glass thickness: 1mm
• Completely resistant against high humidity, scratches and aging effects
• Diffraction limited, the filter will not reduce the optical performance of your telescope!
• Astronomik filters are delivered in a high-quality, long lasting, filter box
• Since 2008 we do ship filters with a completely new design. Any kind of halo or strange reflection is a matter of past
