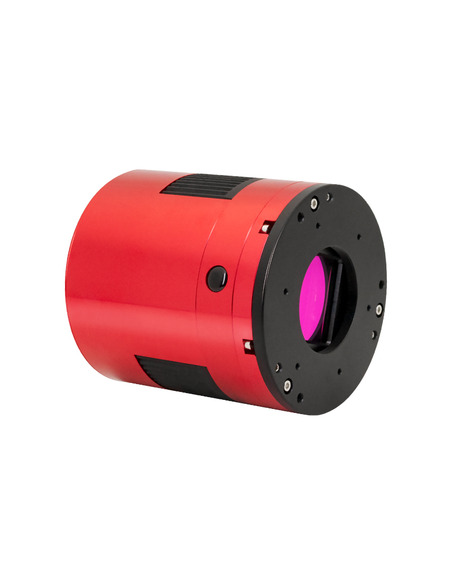

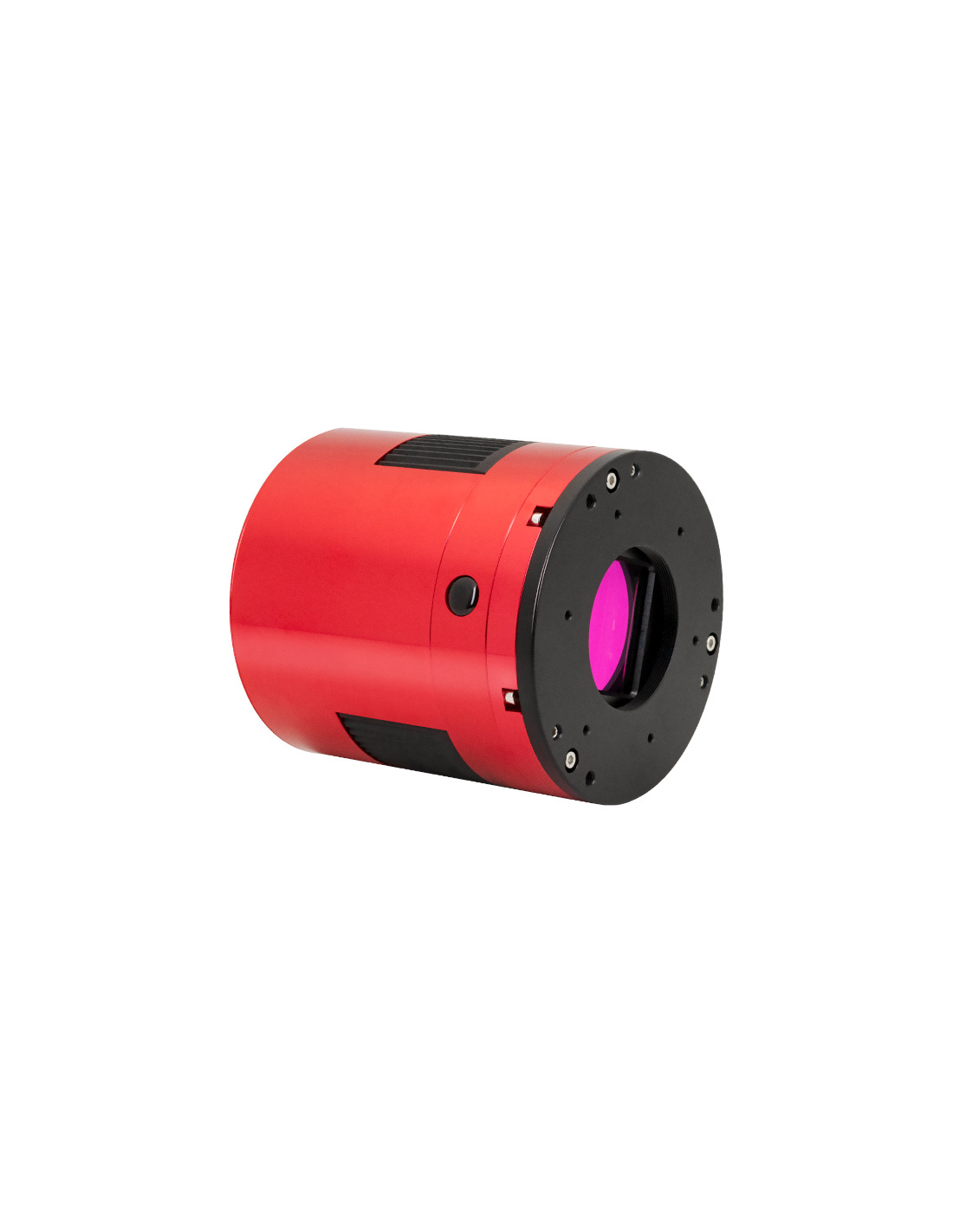

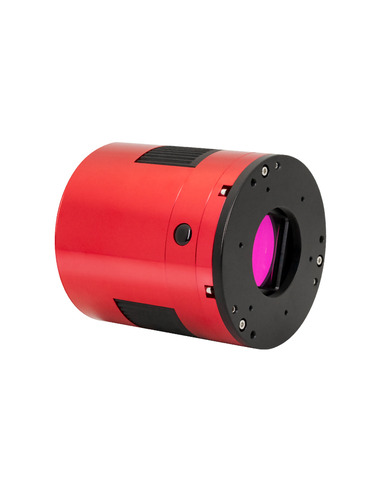

ZWO ASI2600MC-PRO - Cooled Color CMOS Camera

ZWO_ASI2600MC-P
1.899,00 € 2.063,00 € -164,00 €
Bruttopreis
  • Camera Model: ZWO ASI2600MC PRO
  • Sensor brand: Sony
  • Sensor Type: IMX571
  • Mega Pixels: 26.09
  • Resolution (pixels): 6248 x 4176
  • Pixel Size: 3.76
  • Cooling (-°C): -35
  • DDR (MB): 256
  • FPS: 4
  • Read Noise: 1.0 - 3.3e
  • QE (%): 80
  • FW (-e): 50000
  • USB: 3.0
  • Back Focus (mm): 17.5
  • ADC: 16 bit
  • Year of Introduction: 2019

Haben Sie eine Frage zu diesem Produkt?
Fragen Sie danach!
Must-have accessories


Camera technical details

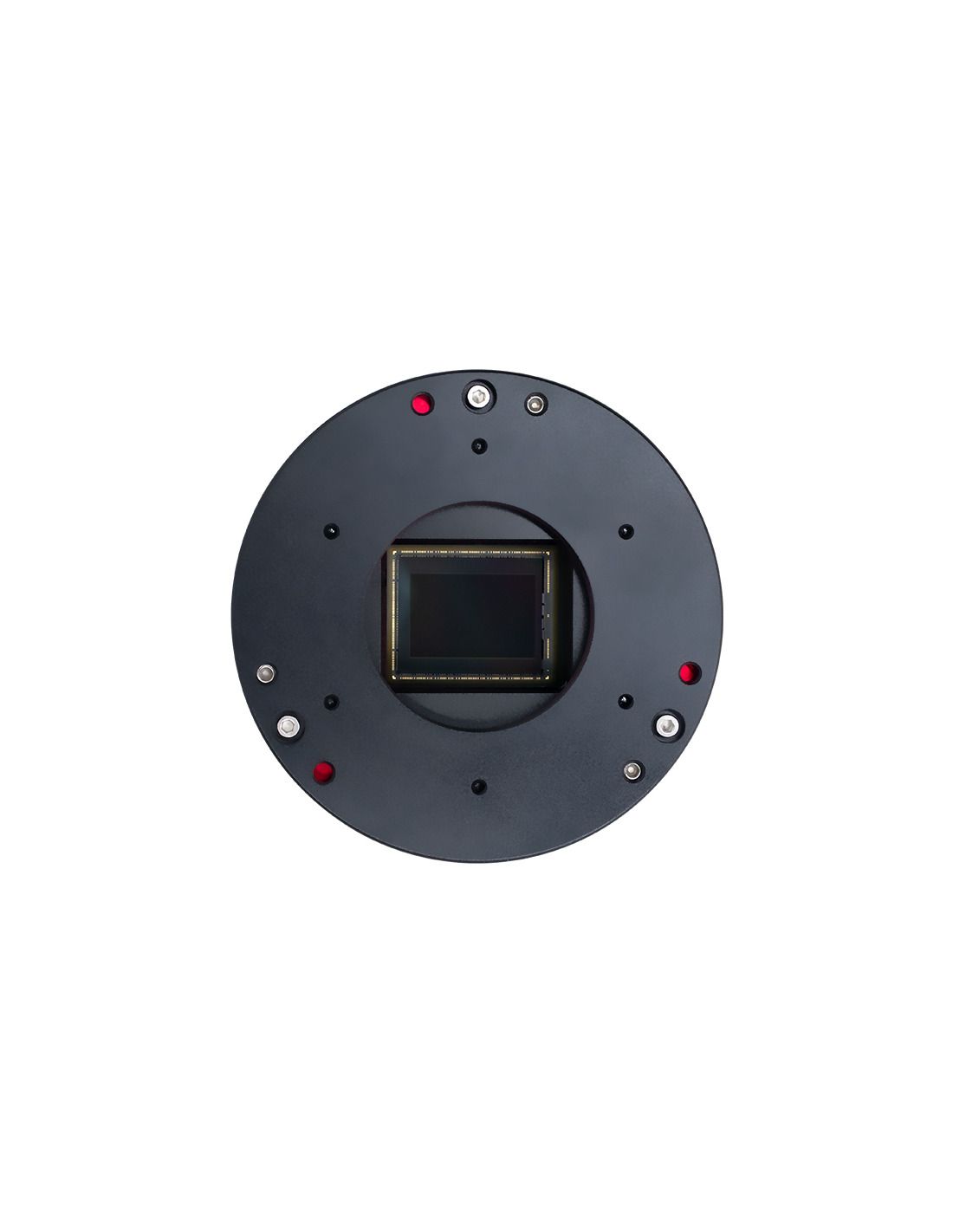

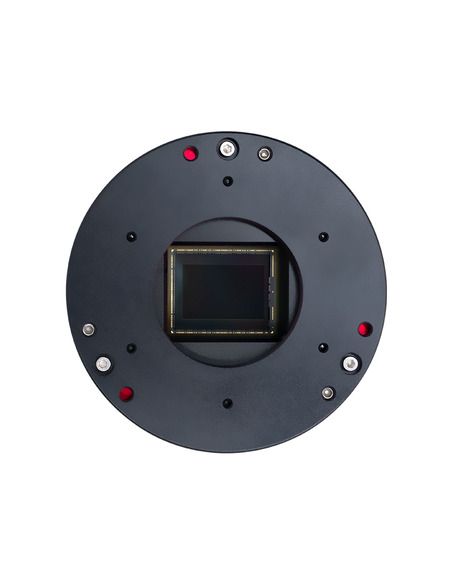

  • Sensor: SONY IMX571 CMOS
  • Diagonal: 28.3mm
  • Image area: 23.5*17.5mm
  • Resolution: 26 Mega Pixel 6248*4176
  • Pixel Size: 3.76µm
  • Bayer Pattern: RGGB
  • Shutter:Rolling shutter
  • Exposure Range: 32µs-2000s
  • ROI: Supported
  • Read Noise: 1.0-3.3e
  • QE peak: over 80%
  • Full well: 50000e
  • ADC:16bit
  • DDRIII Buffer: 256MB
  • Non-volatile memory/On camera storage: Build-in total 192K byte user-accessible space(image size up to 480X320)

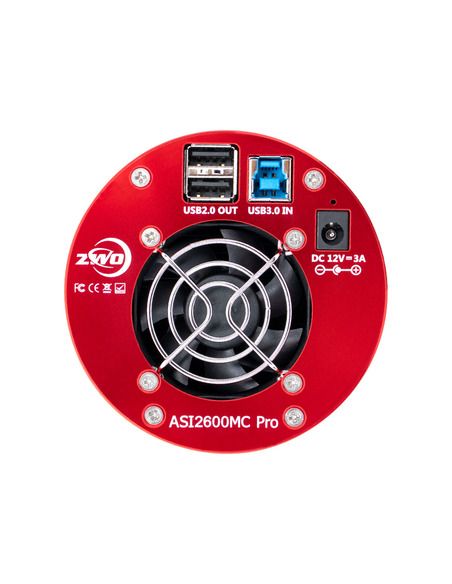

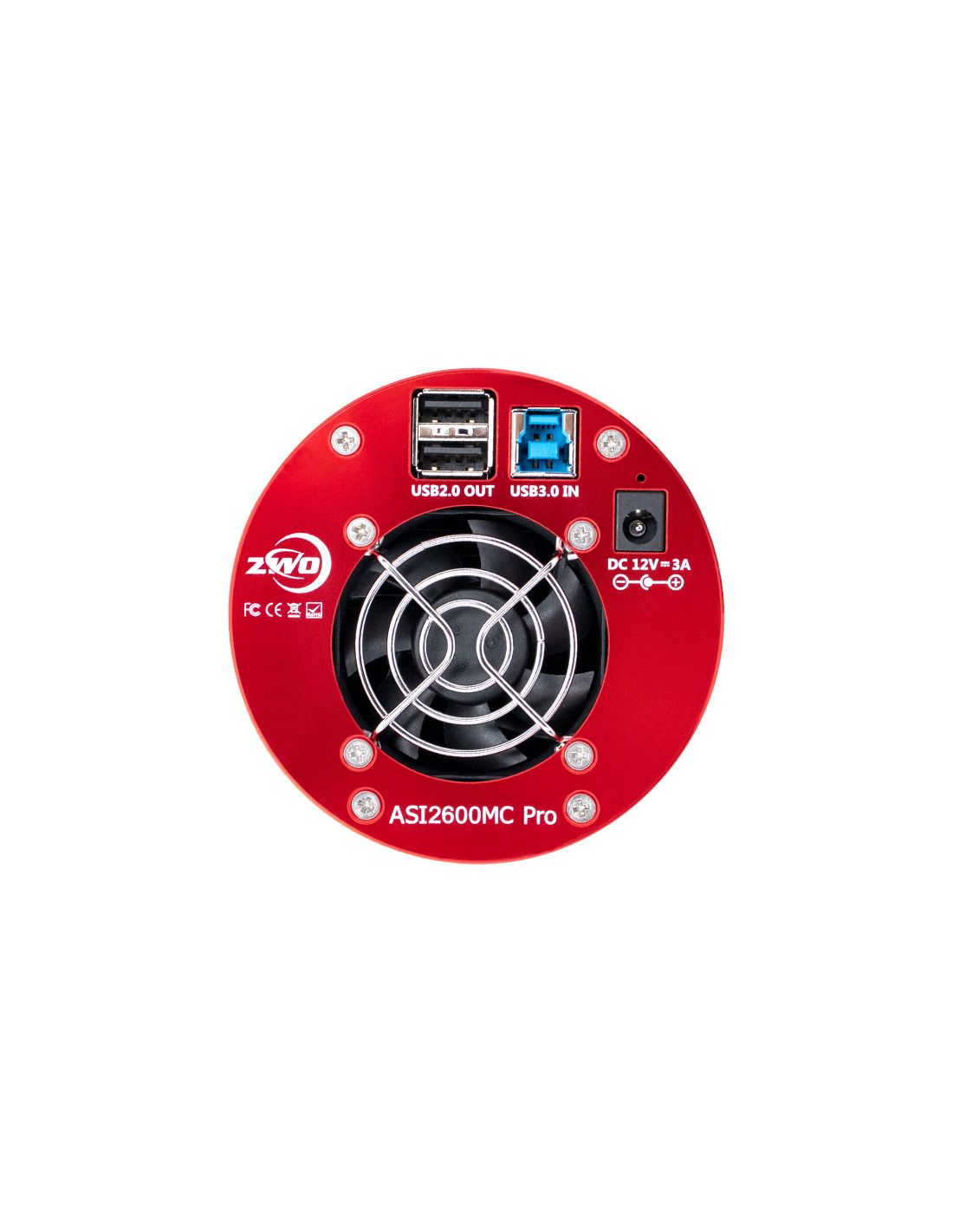

  • Interface: USB3.0/USB2.0
  • Interface: USB3.0/USB2.0
  • Adaptor: M42X0.75
  • Protect window: D60-2 IR Cut
  • Dimensions: 90mm Diameter
  • Weight: 700g
  • Back Focus Distance: 17.5mm
  • Cooling: Regulated Two Stage TEC
  • Delta T: 35°C below ambient
  • Camera Power consumption: 1.15A at 5V
  • Cooler Power consumption: 12V at 3A Max
  • Working Temperature: -5°C—50°C
  • Storage Temperature: -10°C—60°C
  • Working Relative Humidity: 0%—80%
  • Max FPS at full resolution:
  • 16Bit ADC
  • 6248×4176 3.51fps
  • 4096×3072 4.75fps
  • 4096×2160 6.71fps
  • 3840×2160 6.71fps
  • 1920×1080 13.13fps
  • 1280×720 19.29fps
  • 640×480 28.06fps
  • 320×240 51.44fps
  • More resolutions can be seen in software. Customized resolution is also supported.
Pixel Size (µm)
3.76
Chip Resolution (pixels)
6248x4176
Megapixels
26.09
