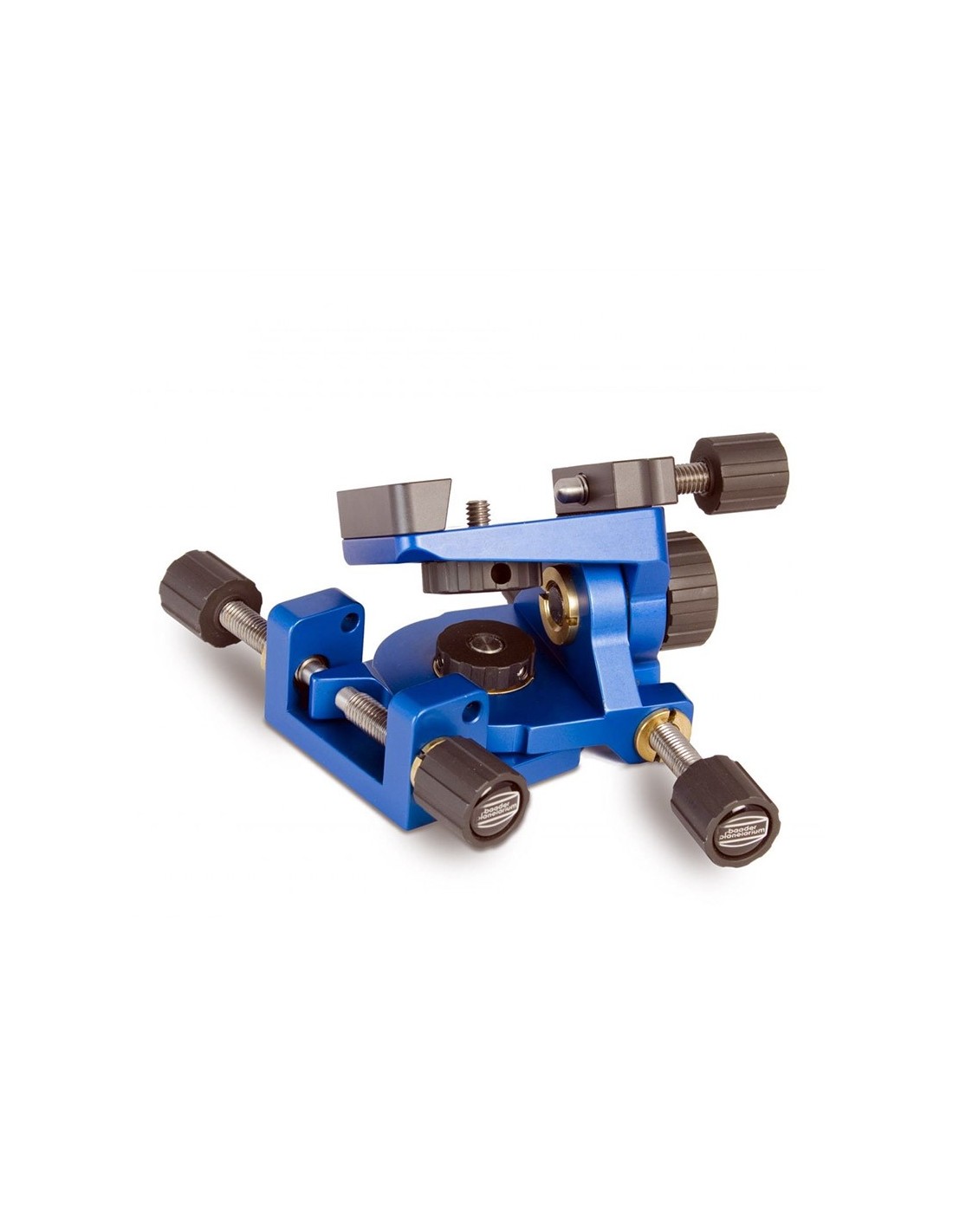

Baader Stronghold Tangent Assembly - Colour Blue

Baader Stronghold Tangent Assembly - Colour Blue

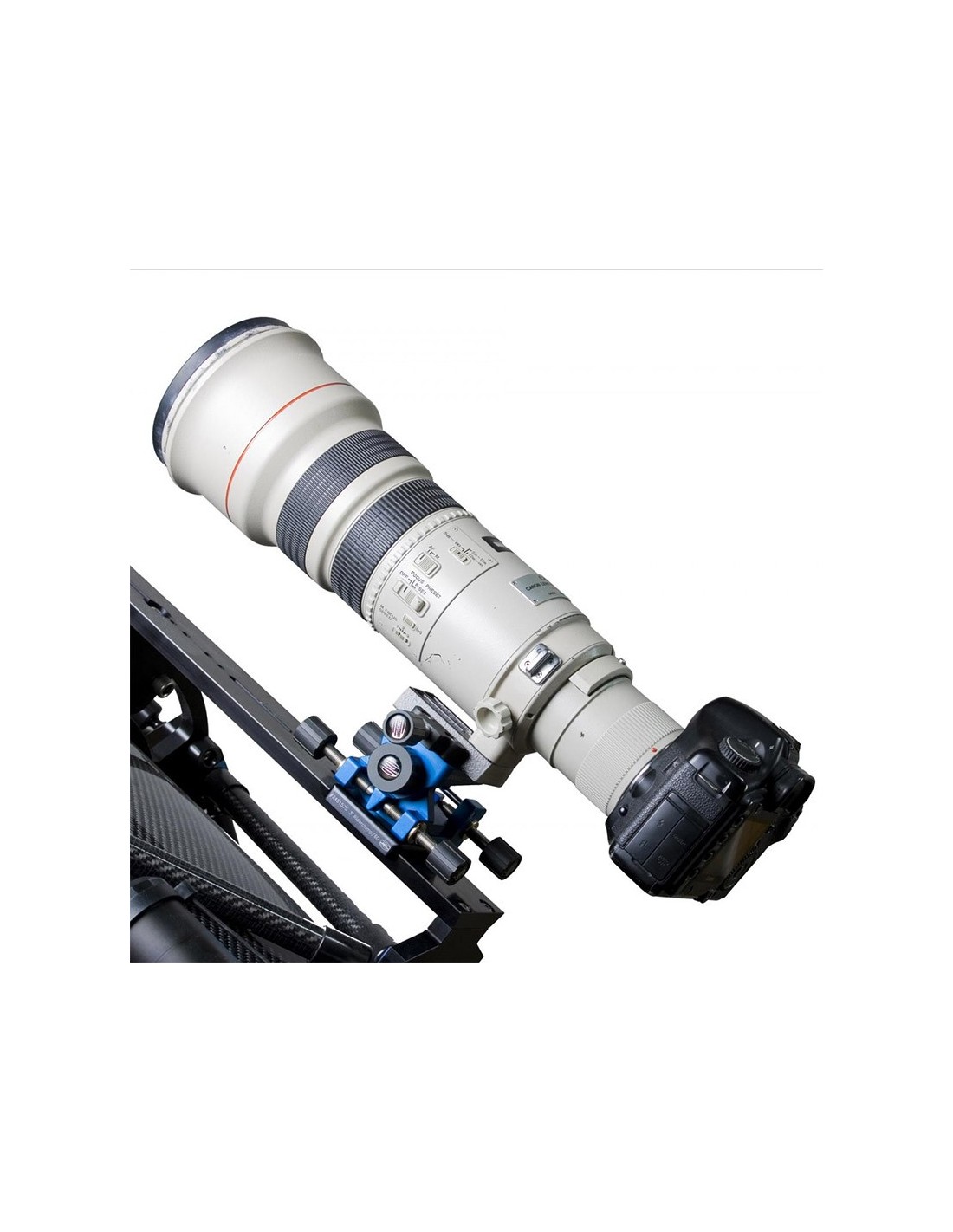

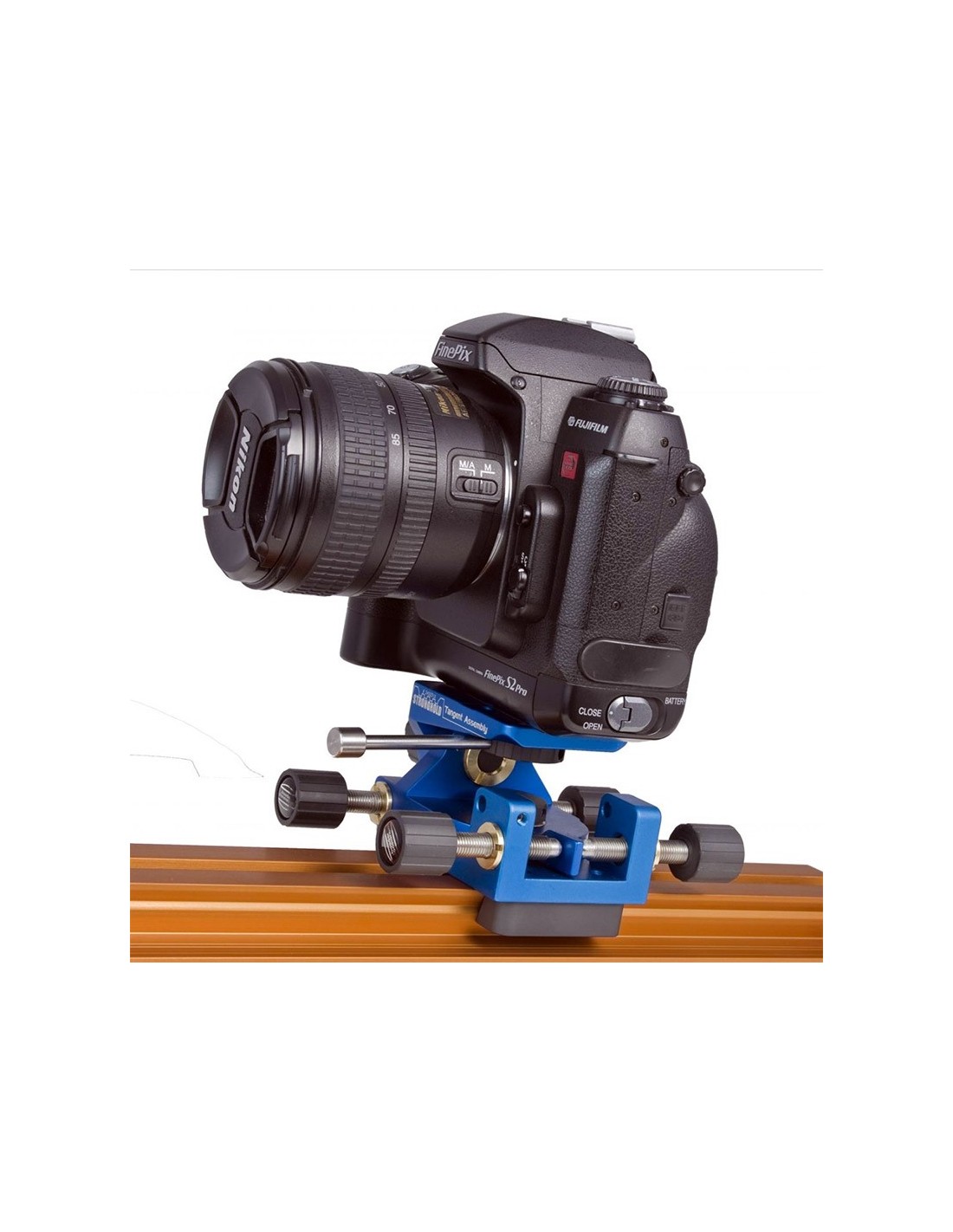

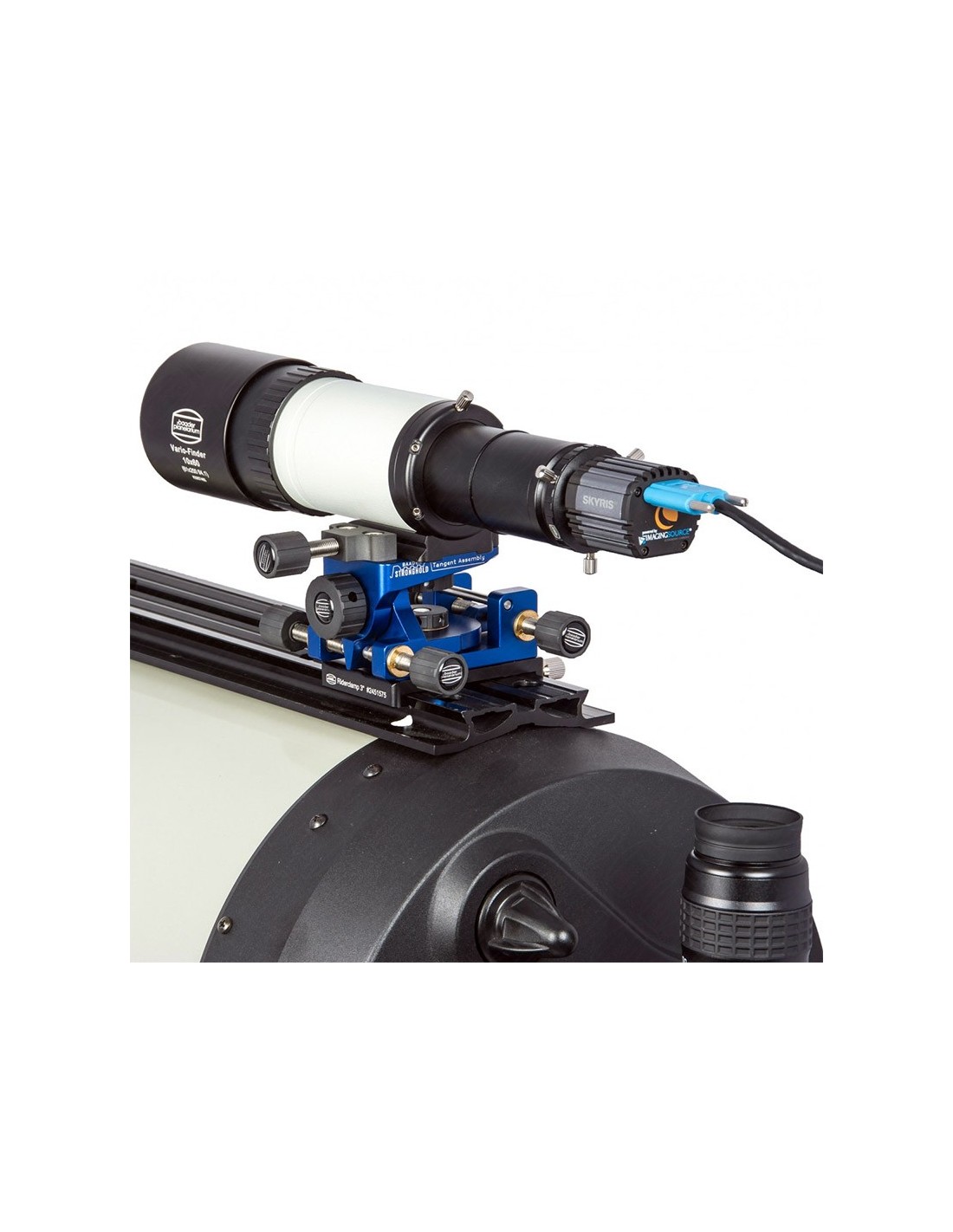

STRONGHOLD has been developed to fasten lightweight viewfinder telescopes, guiding telescopes and heavy telephoto lenses safely to your main telescope. Carrying capacity: 7kg Max. Mounting options Top panel: 1/4 " screw, 6St M6 threaded hole (Recommended thread depth 6mm). Mounting options base plate: 1/4 "and 3/8" photo thread, 4pcs. M6 and 4pcs. M5 threaded hole (Recommended thread depth 6mm)

• Colour: Black or Blue
• Weight: 680 g
• Material: Aluminium, hard anodized
• Loading capacity: max. 7kg for imaging

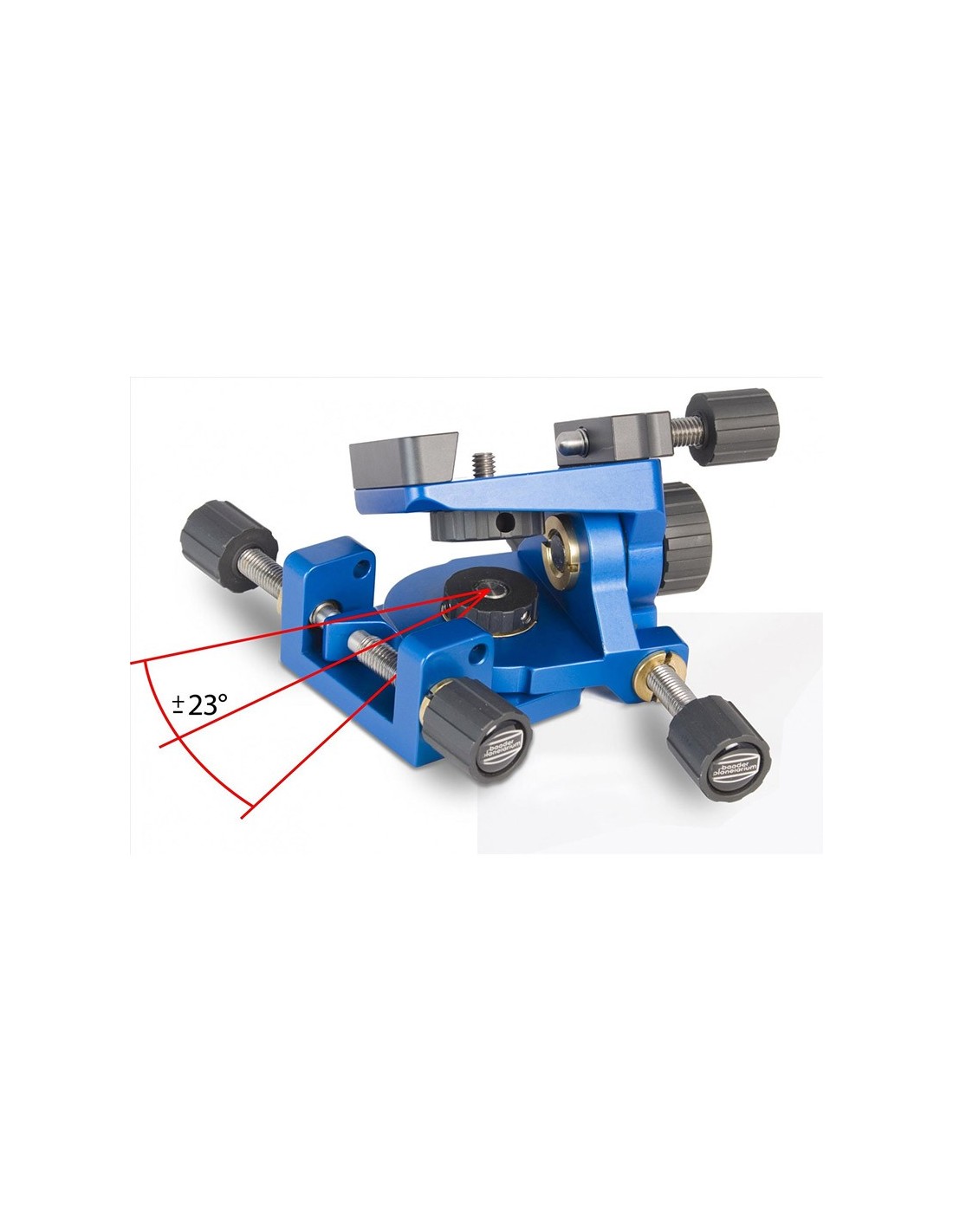

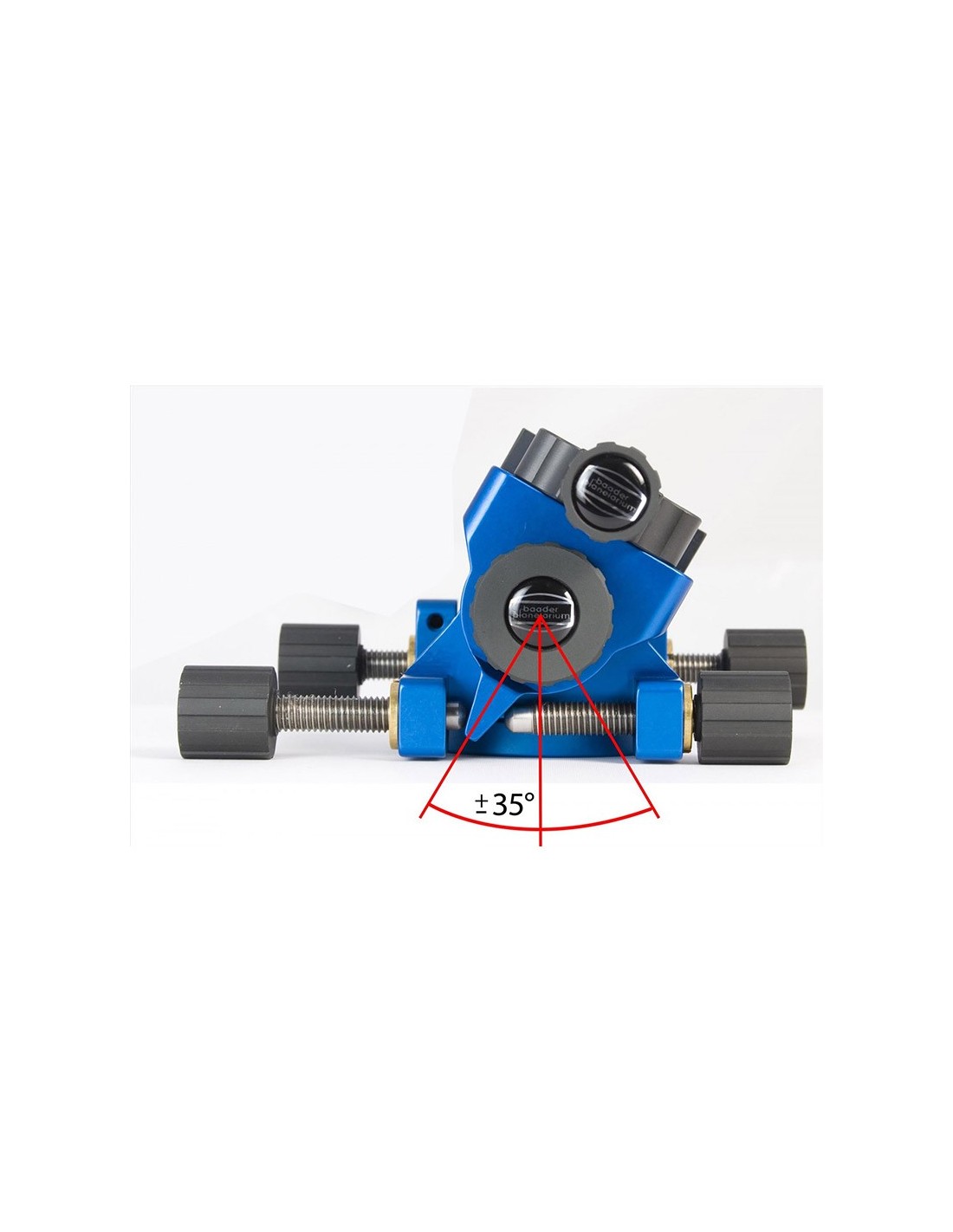

• Azimuth adjustment: +/- 23°, elevation: +/- 35°
• Length: 115mm (incl. knobs)
• Width: 128mm (incl. knobs)
• Height: 54mm (without EQ-clamp)
• Mounting options (top): 1/4" photo thread, 6pc. M6 threads
• Mounting options (base plate): 1/4" and 3/8" photo threads, 4pc. M6 and 4pc. M5 threads
• General mounting options: EQ-clamp (Vixen Standard) included, can be mounted on top or on base. Alternative: Baader 3" clamp with special threads for Stronghold base plate

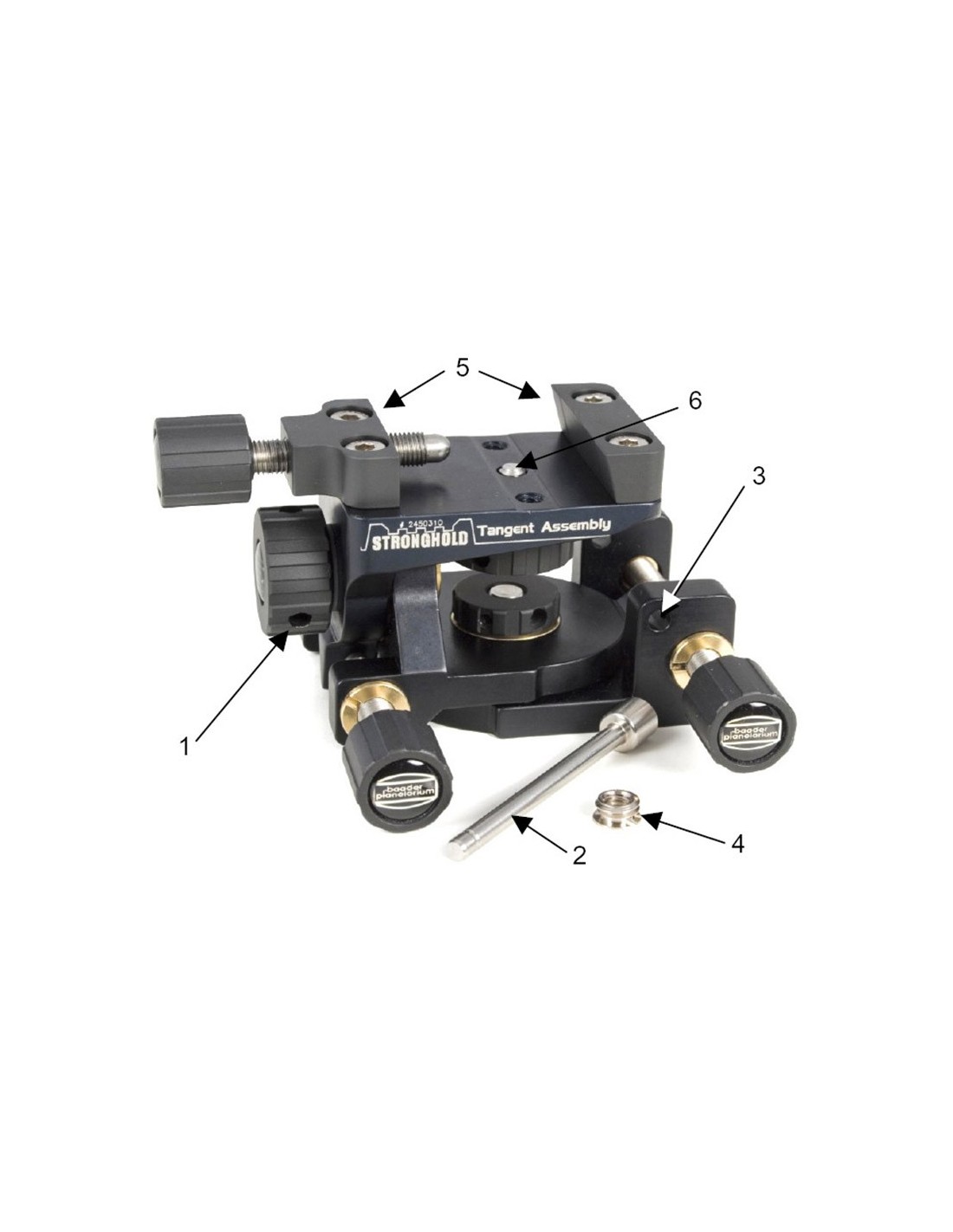

Scope of supply:

1. Stronghold Tangent Assembly
2. Locking Dowel
3. Holder for Locking Dowel
4. Reducer 3/8" to 1/4"
5. EQ-clamp
6. 1/4" Photo-Thumb-Screw (In the as-delivered-condition, the Photo-Thumb-Screw is secured with an O-Ring which has to be removed prior to use)
