Askar Off-Axis Guider (Askar OAG) with M54/M48/T2 connection Adapters

The Askar M54 OAG is designed with multiple threads M42, M48 and M54, which can basically satisfy all the needs of accessory attachment. These adapters are easy to switch and replacing is very easy.

Askar introduced this M54 off-axis guider for astronomy enthusiasts to achieve better guiding effect. The prism of Askar M54 OAG is 10×10mm, which can not only collect more light, but also make it easier to capture the targeted star and realize automatic guiding.

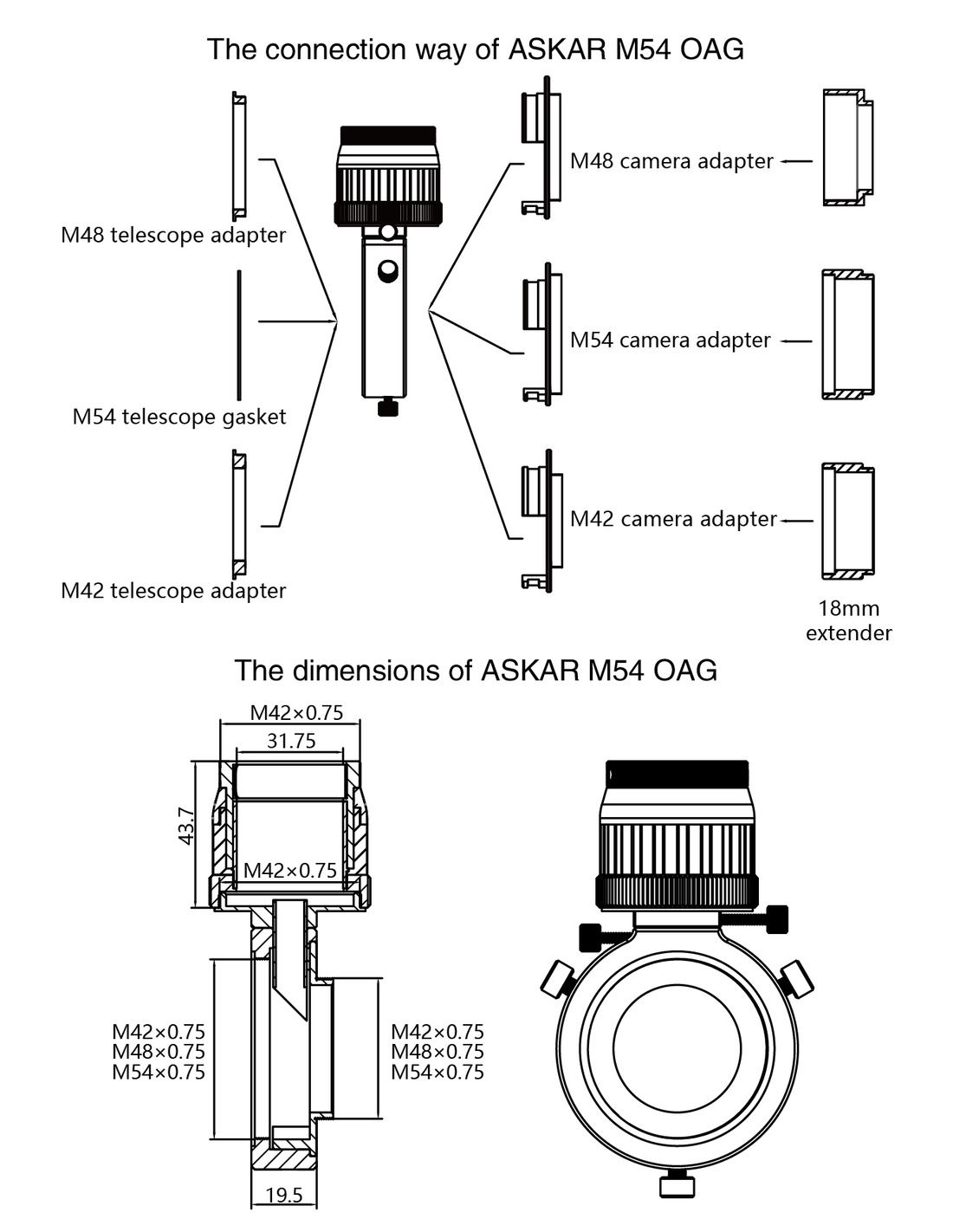

This off-axis guider from ASKAR Fits almost all telescopes and cameras - And has connections at the telescope side: M54x0.75, M48x0.75 and T2 (M42x0.75) female thread and on the camera site: M54x0.75, M48x0.75 and T2 (M42x0.75) female.

Specifications

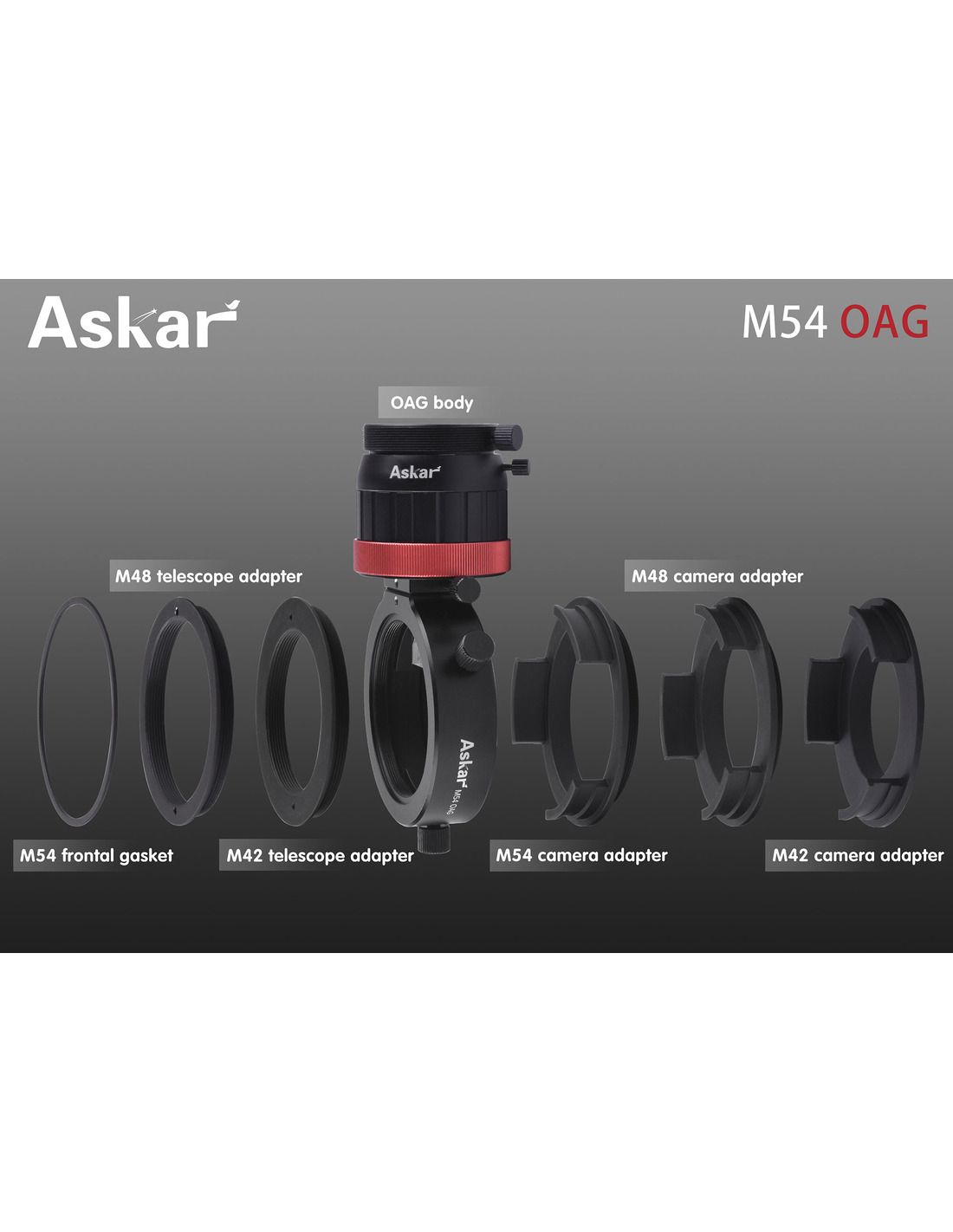

• Lots of connection adapters: M54x0.75, M48x0.75 and T2 (M42x0.75) female thread
• You can use 3 sides of the OAG for orientation of the camera
• The thickness of the OAG is 19.5mm
• There is a lot of space for a filterwheel or the Askar filterdrawer

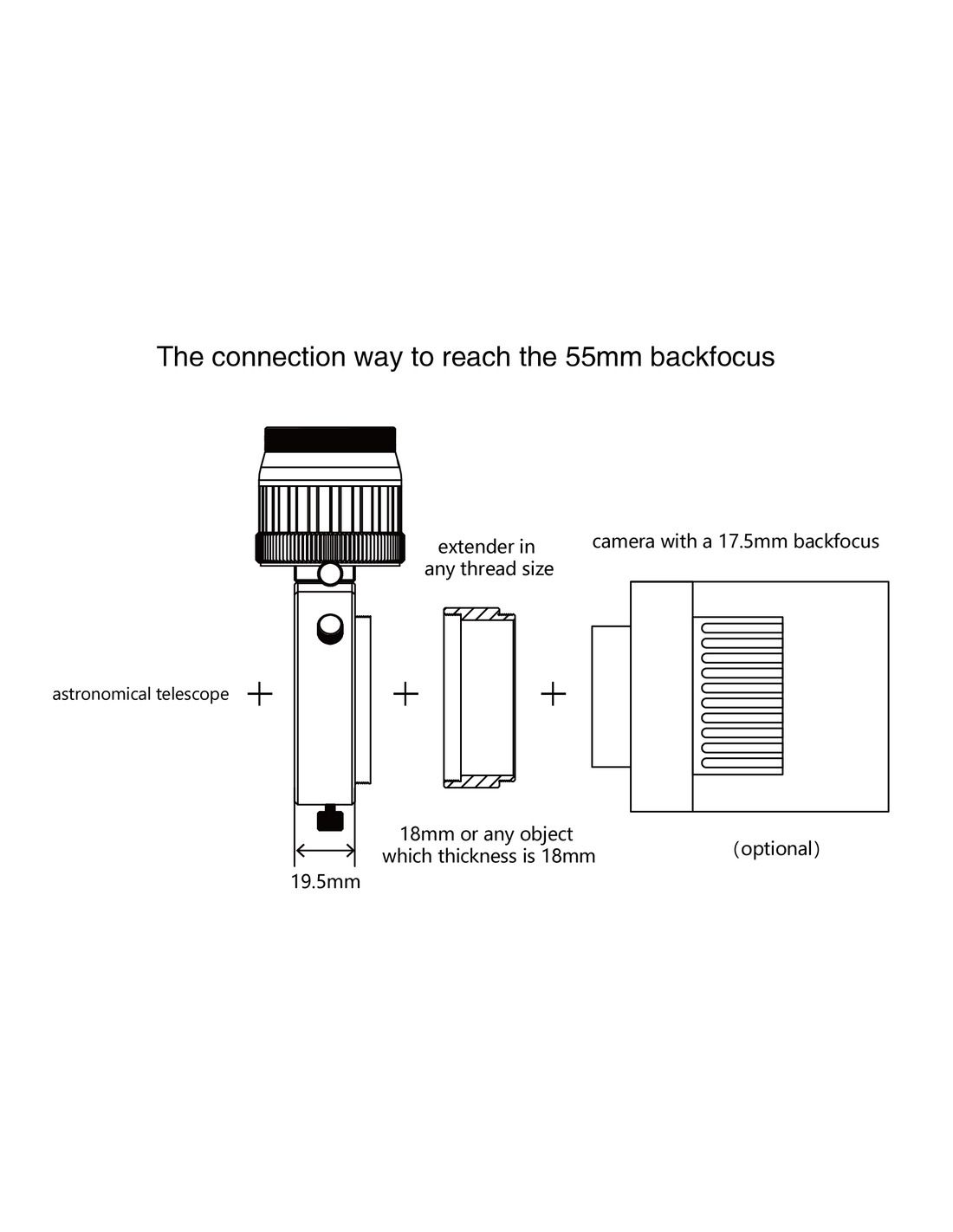

• Working distance for the camera is 55mm
• The guide camera adaption unit has 1.25 inch and T2 Connection with fine focusing to get a sharp guide star
• Large 10x10 mm prism for a large field for the guider camera
• The prism with prism holder can be adjusted for good illumination
