Bresser Dovetail clamp Messier/ES/GP/Vixen
BRE_4910220
€39.00
Tax included
Dovetail clamp Messier/ES/GP/Vixen
- Universal dovetail clamp
- Suitable for 44mm dovetail of Messier/ES/GP/Vixen
- Screw set for Messier/ES handle included
- For piggy-back mounting of a guiding telescope
- Enables astrophotography with autoguiding
- CNC machined Aluminum
- Additional 1/4" photo thread holes available
Do you have a question about this product?

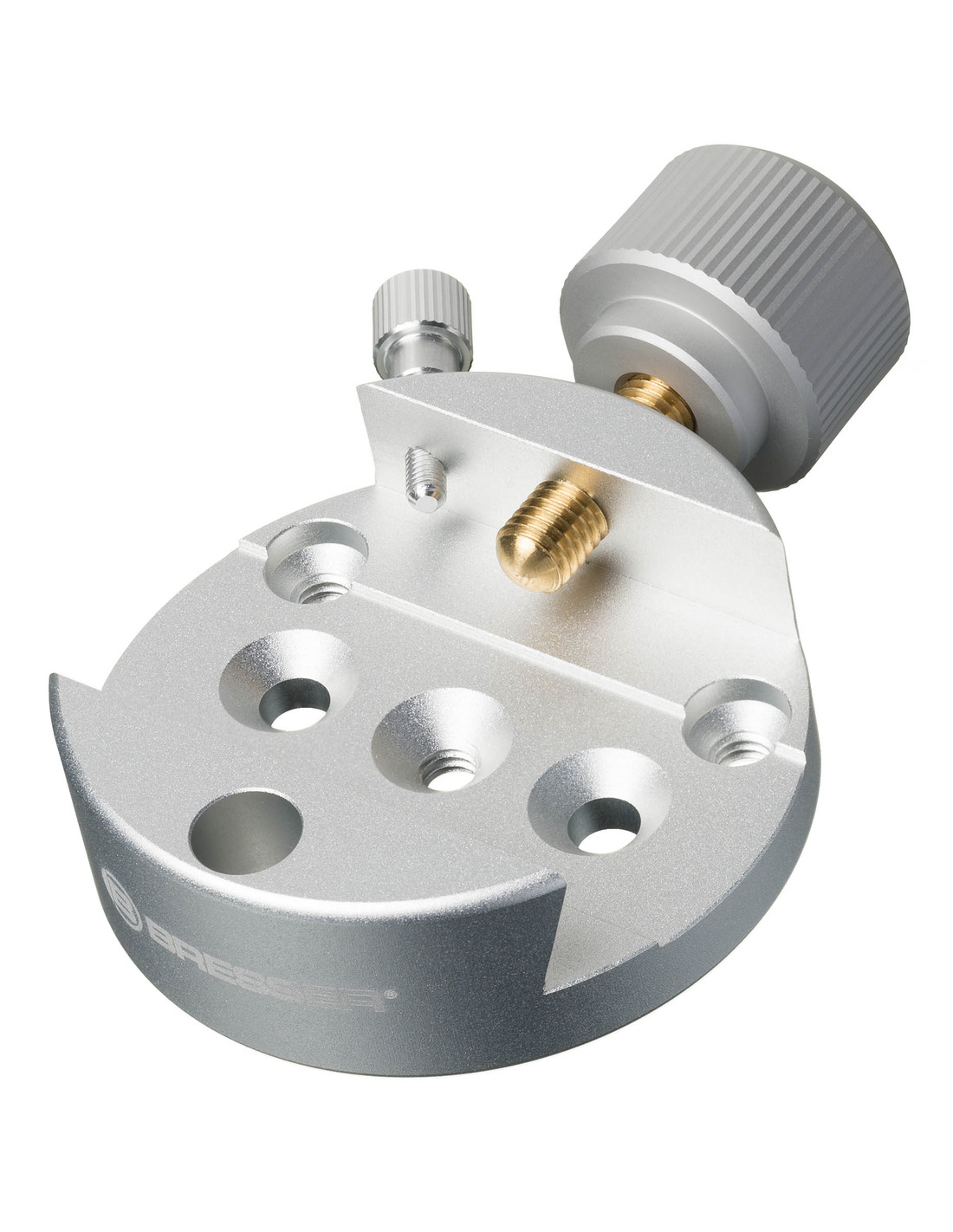

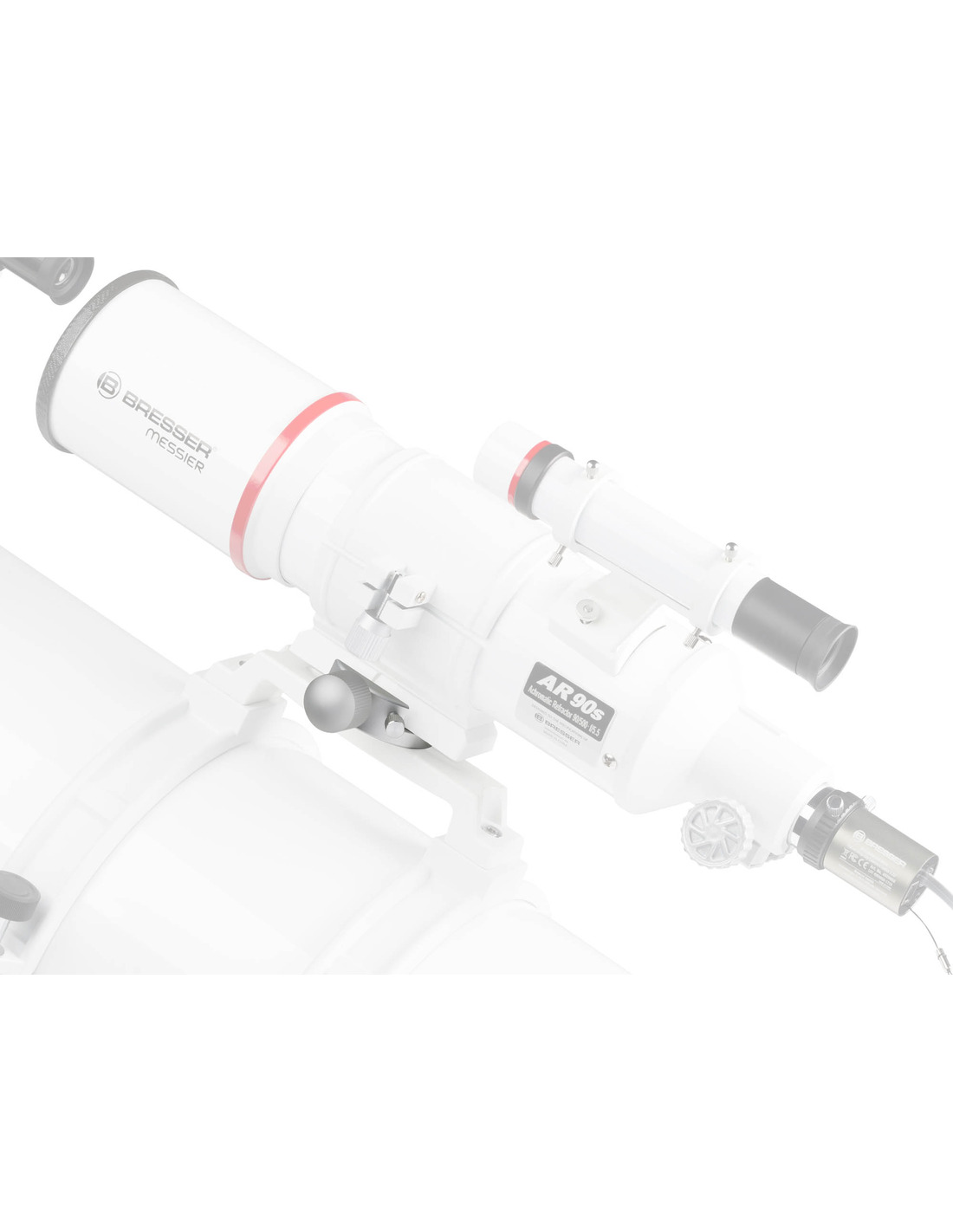

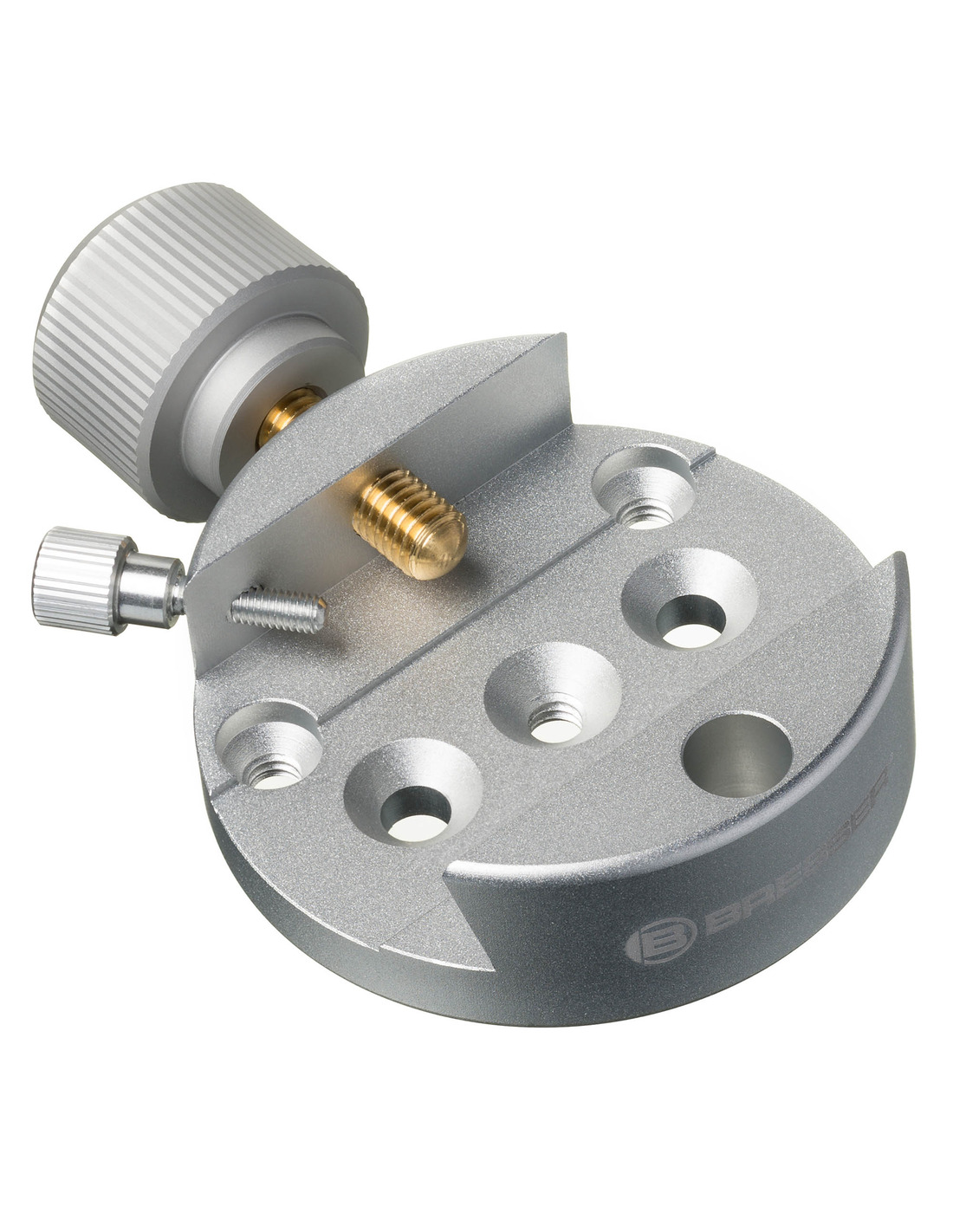

Universal dovetail clamp suitable for all optical tubes which are equipped with a standard 44mm dovetail rail (Messier/ES/GP/Vixen). Also a screw kit is included for mounting the dovetail clamp direct on the top of the handle of all Bresser Messier und Explore Scientific telescopes. Thus a parallel mounted guiding telescope can be set up very easy and enables long exposure astrophotagraphy with autoguiding. The prism clamp has 2 x 6mm countersunk holes (35mm hole spacing) and 3 additional 1/4" photo tapped holes at 120 degrees angular distance on a pitch circle diameter of 55 mm to allow a versatile adaptation to a variety of other telescopes and adapter plates.
Features
- Universal dovetail clamp
- Suitable for 44mm dovetail rail of Messier/ES/GP/Vixen
- Screw set for Messier/ES handle included
- For piggy-back mounting of a guiding telescope
- Enables astrophotography with autoguiding
- CNC machined Aluminum
- Additional 1/4" photo thread holes available
Scope of Delivery
- Dovetail clamp

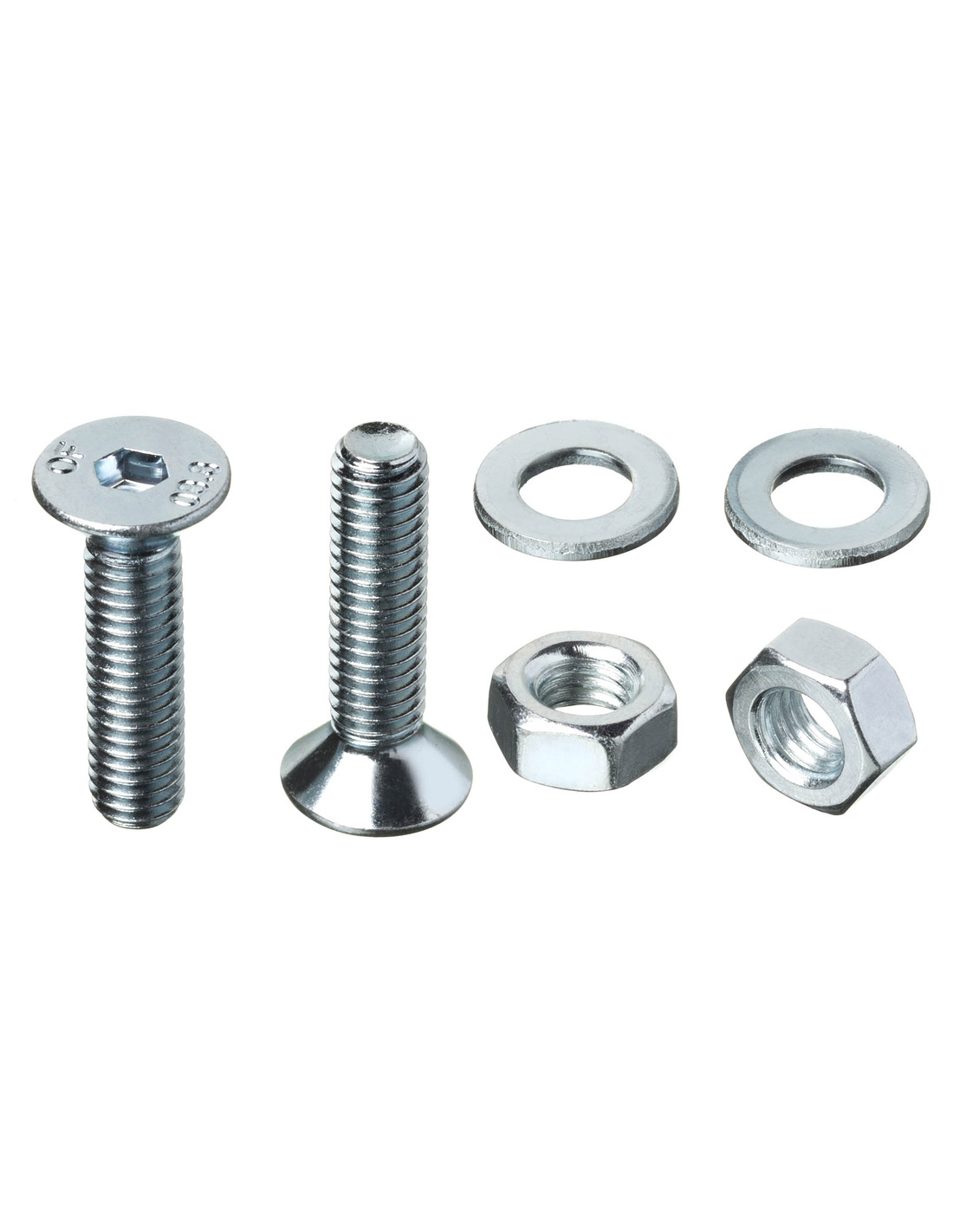

- Screw set (2pcs M6x25mm)
Technical Data
| General Technical Data | |
|---|---|
| Colour | silver |
| Material | Aluminium |
| Extended warranty | 5 years |
| Dimensions and Weight | |
| Total length | 99 mm |
| Total width | 69 mm |
| Total height | 24 mm |
| Net weight (without access.) | 170 g |
| Net Weight total (incl. accessories) | 185 g |
- Mounting Hardware Type
- Clamps
- Mounting Hardware Size
- Vixen
A German manufacturer founded in 1957, Bresser specializes in telescopes, binoculars, and optical devices for casual astronomy and educational purposes. Their diverse range of affordable products caters to budding astronomers and families, making astronomy accessible to a wider audience.
