Berlebach Tripod Report 262/75 - 12361/75

Berlebach Tripod Report 262/75 - 12361/75

THE NEW MODULAR REPORT TRIPOD SYSTEM

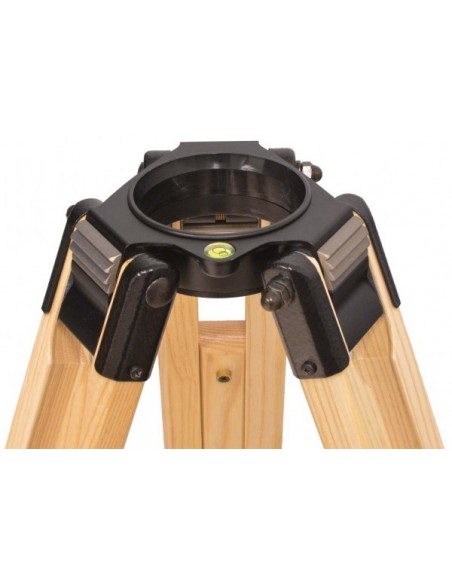

The light magnesium mounting head serves as module basis for 10 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module) . The fixation in the cone ensures a positive-locking, clearance-free connection of the components.

Thanks to the new stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.

The tripod Report 262 is equipped with the module insert 6, i.e. with a half ball with a diameter of 75mm for the direct insertion of professional video tilt heads or a levelling unit (available as an accessory) .
The half ball ensures a pivoting range of 15° in all directions which leads to a quick and precise tripod adjustment.
The levelling unit is fastened my means of the 80-mm wooden handle or the star knob.
Single tripod leg extension.
- Weight: 2,60 kg = 5,73 lb.
- Transportation length: 72cm = 28 inch
- Minimum height: 13cm = 5 inch
- Maximum height: 115cm = 45 inch
- Load capacity: 15.00 kg = 33.07 lb.
- Vibration damping: very good
