PlaneWave Instruments CDK14
PW_1323214Q
20.625,00 €
Tasse incluse
PlaneWave Instruments CDK14 è un PlaneWave instruments telescopio della Robtics categoria Catadiottrico Telescopi.
Specificazioni:
- Sistema telescopico: Solo tubo ottico (OTA)
- Tipo di telescopio: Astrograph, Dall-Kirkham (Optimised)
- Serie di telescopi: CDK
- Marchio del telescopio: PlaneWave instruments
- Apertura del telescopio (gamma): 300mm - 499mm
Avete una domanda su questo prodotto?

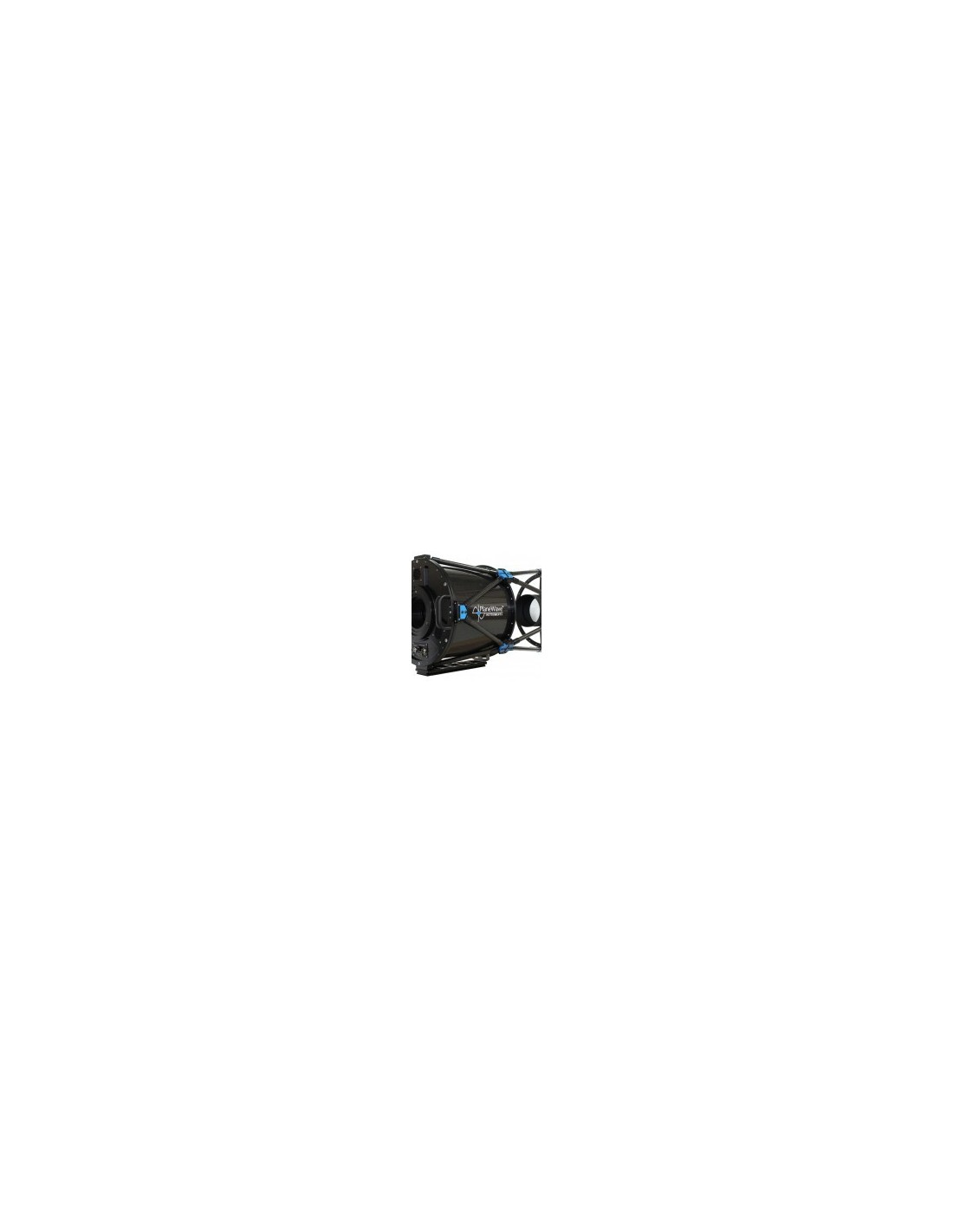

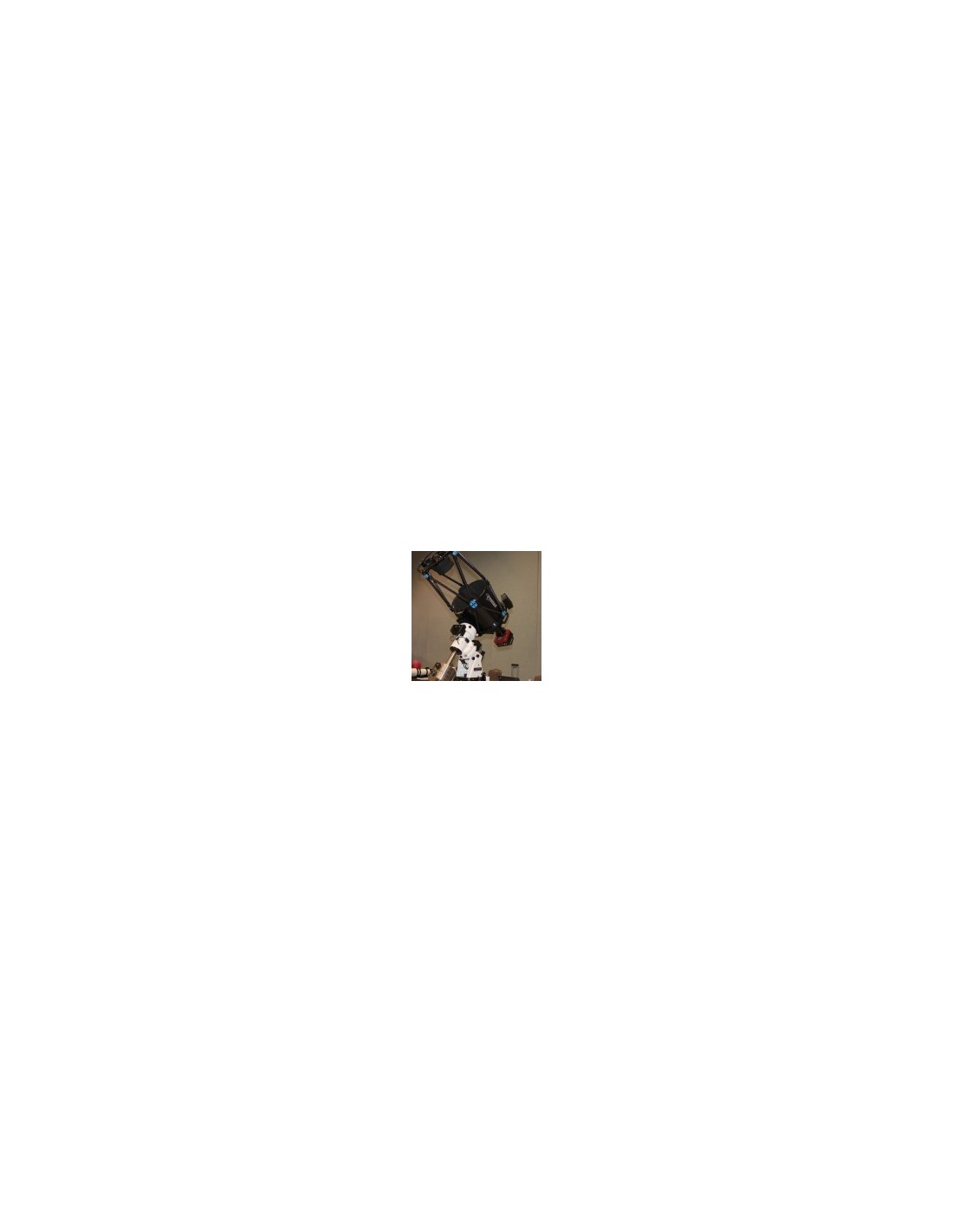

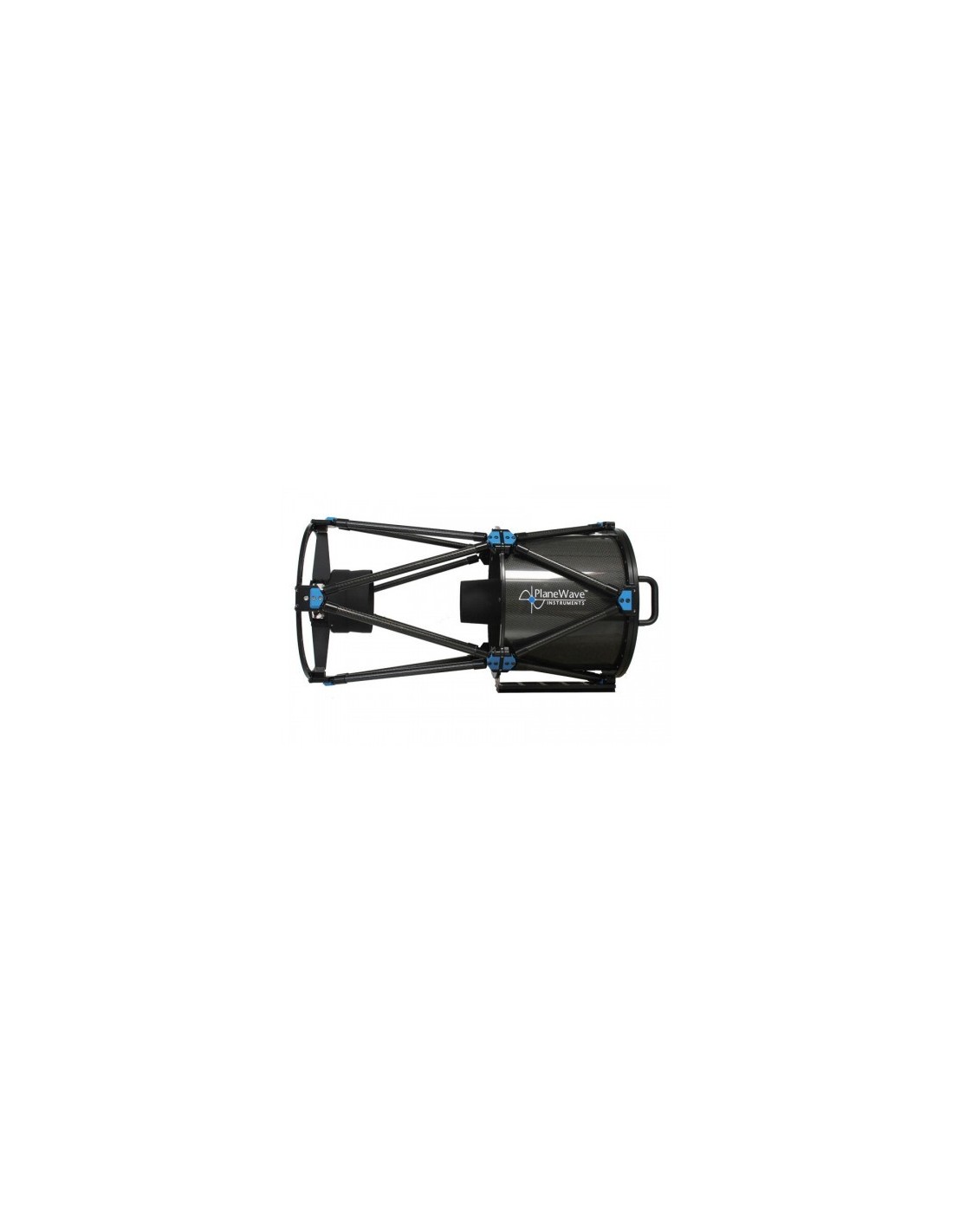

The PlaneWave Instruments CDK14 is a 14 inch (0.36 m) f/7.2 Corrected Dall-Kirkham Astrograph telescope. The CDK14 covers a 70mm field of view without any field curvature, off-axis coma, or astigmatism. The CDK14 is a lightweight carbon-fiber truss design weighing less than 50lbs, with 3 cooling fans blowing air throughout the back of the telescope. The CDK optical design is the innovative solution for unsurpassed astro-imaging quality at an affordable price.
The CDK (Corrected Dall-Kirkham) Optical Design is an innovative solution for unsurpassed astroimaging quality at an affordable price. The CDK telescope design provides excellent imaging with large format CCD cameras while remaining superb for visual use. The CDK design far exceeds the off-axis performance of most commercial telescope designs including the Ritchey-Chrétien design.
This no-compromise design is unique in making the optical alignment forgiving and collimation very easy. This guarantees the user the best possible performance from the telescope. The end result at the image plane of the CDK design is no off-axis coma, no off-axis astigmatism
Price without shippingcosts
Specification:
OPTICAL SYSTEM
| Optical Design | Corrected Dall-Kirkham (CDK) |
| Aperture | 14 inch (356mm) |
| Focal Length | 2563mm (101 inch) |
| Focal ratio | F/7.2 |
| Central Obstruction | 23.5% by surface area; 48.5% by diameter |
| Back Focus from Mounting Surface | 11.09 inch (282 mm) |
| Weight | 48 lbs (22 kg) |
| OTA Length | 35 inch (889 mm) |
| Optical Performance | 3.1 micron RMS at 13mm off-axis; 6.0 micron RMS at 35mm off-axis - Spot Diagram |
| Upper Cage | Carbon Fiber Truss |
| Lower Cage | Carbon Fiber Truss and Light Shroud |
| Optimal Field of View | 70mm Image Circle |
SECONDARY MIRROR
| Diameter | 165 mm (6.5 inch) |
| Material | Precision Annealed Borosilicate |
| Shape | Spherical |
| Coating | Enhanced Aluminum - 96% |
PRIMARY MIRROR
| Optical Diameter | 14 inches (355.6) |
| Outer Diameter | 14.5 inches (468.3mm) |
| Shape | Prolate Ellipsoid |
| Material | Precision Annealed Borosilicate or Fused Silica |
| Coating | Enhanced Aluminum - 96% |
LENS GROUP
| Diameter | 95mm (3.7 inch) |
| Number of lenses | Two |
| Coating | broadband AR Coatings (less than .5% reflected from 400 to 700nm) |
STANDARD FEATURES
| CDK Optics | The Corrected Dall-Kirkham design yields a perfectly flat field free from off-axis astigmatism, coma and defocus. |
| Carbon Fiber Truss Design | Minimizes thermal expansion which causes focus shift with changes in temperature |
| Dovetail Expansion Joint | Allows for the difference in thermal expansion between carbon fiber and aluminum. The expansion joint allows the aluminum dovetail expand and contract without stressing the carbon fiber lower truss |
| Cooling Fans | Three cooling fans blow air inside the back of the telescope. This helps the telescope to reach thermal equilibrium quickly. The fans are controlled by a computer if the optional Electronic Focus Accessory (EFA Kit) is purchased. |
| Delta-T Ready | For added dew prevention, the CDK14 is internally wired with polyimide film heater pads and temperature sensor, ready to be controlled with the optional Delta-T controller. |
SHIPPING
| Crated Shipping Weight | 225 lbs |
| Crate Width | 31 inches |
| Crate Height | 26 inches |
| Crate Length | 53 inches |
INCLUDED ACCESSORIES
| Ronchi Spacer (600341 & 600344) | This spacer sits in place of a focuser and is used for setting the primary to secondary spacing. It has an 1-1/4 inner diameter and may be used with 1-1/4 oculars for collimation |
| Ronchi Ocular | This ocular is a Ronchi screen used for setting the primary to secondary spacing |
| Primary Mirror Cover | The Primary Mirror Cover protects the primary mirror |
| Planewave Thumb Drive | Containing all documentation and software for collimation and spacing |
- Sistema telescopico
- Solo tubo ottico (OTA)
- Tipo di telescopio
- Astrograph*~Dall-Kirkham (Optimised)
- Serie di telescopi
- CDK
- Apertura del telescopio (mm)
- 356mm
- Lunghezza focale del telescopio (mm)
- 2563mm
- Telescope Focal Ratio (F)
- F7.2
Based in the USA, PlaneWave Instruments, established in 2003, is known for precision optical telescopes and mounts aimed at professional astrophotography. Their advanced engineering and high-quality products appeal to experienced astronomers and observatories dedicated to deep-sky imaging.
