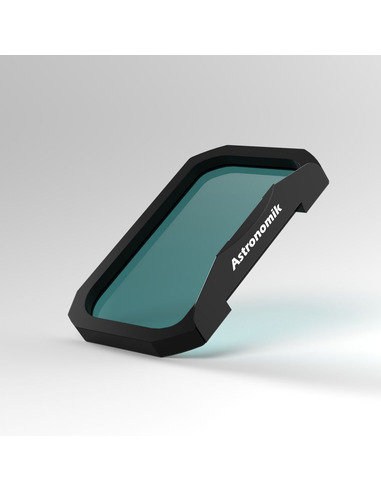

Astronomik UHC-E Filter Clip-Filter Pentax K-1

Clip Filter for Pentax K1 and K1 MkII

We are proud to unveil a new member of the Clip-Filter-Family: Clip Filters for Pentax K1 and K1 MkII cameras:

The Clip-Filter are designed and optimized to be used with normal lenses and with telescopes as well.

Compatibility:

• The Clip-Filter are sucessfully tested with Pentax K1 and K1 MkII bodies

A short guide selecting the right filter for you:
Lot´s of customers are overwhelmed by the vast number of filters offered by Astronomik. Due to that we give you a short guide how to select the right filter for your application below.

Our normal recommendation for the "First Filter" is the Astronomik CLS filter. The CLS blocks all unwanted artifical light pollution and natural airglow and gives you a dark background in your images. When using this filter you may expose much longer than without, so you will be able to pick much fainter structures and objects. The filter is designed in such a way that all objects are given in their natural colors. -They would look the same if your human eye would be much more sensitive!
Important: The standard CLS has no built-in IR-blocker. In case your camera has been modified for Astrophotography, please take the CLS-CCD which has a built-in IR-blocker!

The CLS is the fist choice for any applications like Night-scape photography and Time Lapse movies!

If you have to work under a heavy light polluted sky, the UHC is a good choice too: It´s transmission curve is very tight. It gives you the light from the Hß, OIII, H-alpha and SII lines in one single exposure. The reduction of light pollution is much stronger than the CLS/CLS-CCD, but the filter will work for gas nebulas only! Any galaxies and open or globular clusters are filtered out! You will get "false colors" with the UHC, no natural colors like the CLS/CLS-CCD.

If you want to die deeper into Astrophotography with your Sony, you should think about a set of emission line filters centered on OIII, H-alpha and SII. All three are available either with 12nm or 6nm bandwidth. With these filters you can do ultra-deep images even under the worst sky you can imagine plus the full moon high up in the sky! Imaging possibilties are nearly unlimited with these filters!
The emission line filters isolate the light from a very tight range of wavelengths. So you don´t get any color information! if you want to create color images (false color like images from the HST), you will need all three filters to mix the three channels into a final color image.
However the H-alpha filter is a great using it alone: Data can be processed to splendid greyscale images!

If you own a modified camera, you should consider the OWB filter: OWB is short for "Original white Balance", and that´s what the filter does: It gives you back the normal color reproduction from a un-modified camera. When using the OWB you may use your modified camera for normal daylight-photography again, without the need for color-correcting each image afterwards!

The Astronomik UHC-E filter is our budget filter for deep-sky observation of emission nebulae and comets under light polluted skies. Its particularly suitable for small scopes.

The UHC-E Filter increases contrast of emission nebulae and comets and blocks the light of typical streetlights as well as airglow. It is best suited for telescopes up to 5" / 125mm.

Main use

The Astronomik UHC-E filter provides a FWHM of 45nm and blocks the light of typical streetlights (e.g. sodium and mercury vapour) as well as airglow. Thus it increases contrast between your target and the night sky. The contrast enhancement is less than that of the Astronomik UHC filter, but at the same time the transmitted amount of starlight is greater. It's therefore better suited to smaller telescopes. As the UHC-E filter passes a spectral line of Carbon (due to the higher FWHM) it opens up the possibility of comet observation.

Other uses

• Observation of Jupiters clouds.
• Easier resolution of Double Stars.
• Photography under light-polluted skies with DSLRs and other cameras.

Alternatives

If you use a telescope with an aperture larger than 5", we suggest the use of our standard UHC-filter because of its greater contrast enhancement capabilities. If you use a telescope larger than 8", you can try our OIII filter for even better results when observing specific nebulae.

Suitability

• Visual observation (dark skies): Reasonable, an UHC filter is more suitable
• Visual observation (urban skies): Good, for telescopes up to 125 mm aperture and medium exit pupil
• Film photography: Good, but very long exposure times
• CCD photography: Good, when used with an additional IR-block-filter
• DSLR photography (original): Good, colour balance is near perfect
• DSLR photography (astro modified): Good, colour balance is near perfect
• DSLR photography (MC modified): Good, when used with an additional IR-block-filter
• Webcam / Video (Planets): Unsuitable
• Webcam / Video (Deep Sky): Very good, if light pollution is a big problem

Technical Data

• typ. 94% transmission at 486nm (H-beta)
• typ. 95% transmission at 496nm (OIII)
• typ. 95% transmission at 501nm (OIII)
• typ. 94% transmission at 656nm (H alpha)
• transmission 465nm to 530nm and above 645nm
• Full width at half maximum 45nm
• Parfocal with other Astronomik filters
• Glass thickness: 1mm
• Completely resistant against high humidity, scratches and aging effects
• Diffraction limited, the filter will not reduce the optical performance of your telescope!
• Astronomik filters are delivered in a high-quality, long lasting, filter box
• Since 2008 we do ship filters with a completely new design. Any kind of halo or strange reflection is a matter of past
