Optolong 2 inch LRGB CCD Filterset

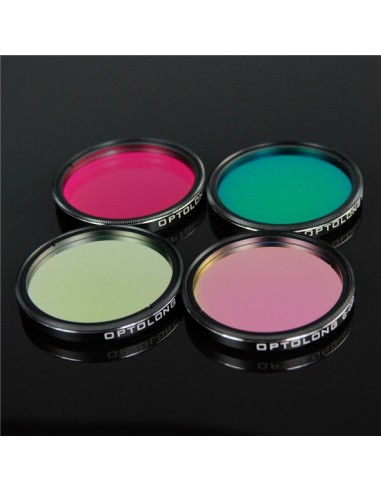

Optolong 2 inch LRGB CCD filterset

The LRGB filter set is designed for maximum contrast and with extremely high gradients for clear differentiation of colors. The LRGB filter set divides the spectrum into its components red, green, blue and luminance.

Main Use and Performance

• Work well with debayered monochrome CCD cameras
• Suitable for deepsky and planetary CCD imaging
• RGB-imaging allows equal weighting factors for each channel, very important for automated imaging.
• The ideal raw material for image processing in the sRGB color space is available with LRGB filter set and mono CCD camera.

Specification:

Technical Data

• Schott substrate material
• Thickness 2.0mm
• Surface Quality: 60/40 (Refer to MIL-O-13830)
• Fine-optically polished to ensure accurate 1/4 wavefront and <30 seconds parallelism over the both surfaces
• 95% transmission at passband
• Infrared wavelength 700-1100nm cut-off
• Precision off-band blocking

Coating Parameter

• Multi-layers anti-reflection coating
• Non-cementing optical substrate coating
• Electron-beam gun evaporation with Ion-assisted deposition coating technology for durability and resistance to scratching, as well as stability on CWL(central wavelength) no deviation affected by temperature change
• Planetary rotation system offers precision and homogeneity of coatings ensuring high value on transmission of pass-band and Optical density of off-band

Filter Cell

• Ultra-thin filter cell minimize vignetting by maximize possible clear aperture (clear aperture is 26mm for 1.25"; 45mm for 2")
• Aerometal Material | Precise CNC Machining | Sand Blasting Process | Black Anodized Finish | Extinction Treatment to Prevent Reflection | Laser Engraving No Fading

Package

• Plastic PP Case | Imported High Pressure EVA Case Lining | Silver Cardboard Box | High Density Sponge Carton Lining

Size

• Standard 1.25" & 2" | Round 36mm Unmounted
