Astro-Physics 12AZKIT Heavy-Duty Azimuth Adjuster Upgrade Kit 1200 Mounts

Astro-Physics 12AZKIT Heavy-Duty Azimuth Adjuster Upgrade Kit for 1200 Mounts

This one-piece assembly makes azimuth adjustment easier and more accurate for precise polar alignment in your observatory or in the field. The heavy-duty construction and integrated one-piece design results in smooth control of the azimuth axis. Large left and right adjuster knobs are graduated for precise control of azimuth position angle. The small graduations are 1.3 arc minutes per graduation; long graduations are 6.5 arc minutes per graduation. The size of the knobs makes them easy to turn with very little torque required, even with the mount fully loaded.

The kit includes a set of hardened washers for the four lock-down knobs. With these washers, the lock-down knobs can hold the mount down tight, while still allowing the axis to be easily adjusted with your fingers. This will eliminate minor shifts in the axis when you are tweaking your azimuth adjustment.

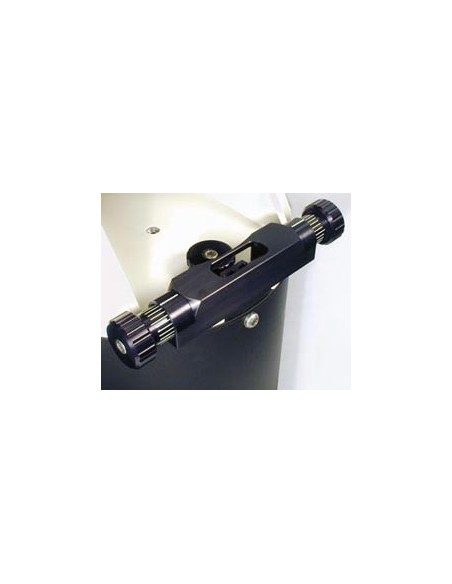

The adjuster block installs easily on your base plate using the existing hole pattern and screws. Simply remove the two existing adjuster blocks and replace them with the new unit. Place the four washers beneath the lock-down knobs. The washers have a sharp edged side and a rounded edge side. Place them with the sharp edge of the washers facing up toward the knob, rounded edge down onto the painted surface of the base plate. Complete instructions and tips for adjusting both the azimuth and altitude axes are included in the package. Installation takes only a few minutes, but will result in significantly easier setup the next time you are out under the stars.

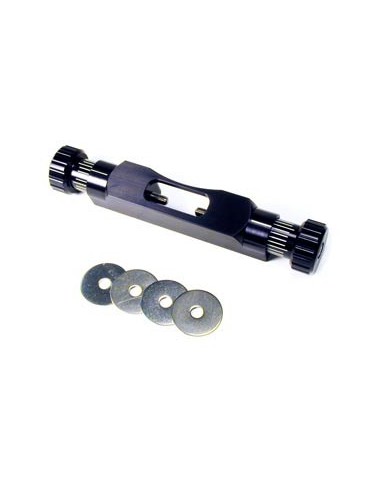

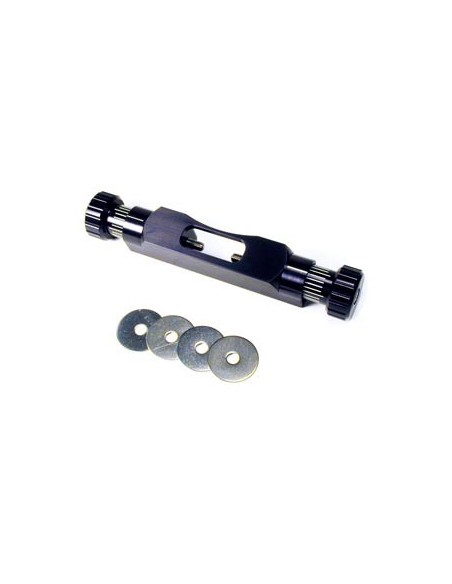

Includes: Our part# S1200AZA-B and four washers.

Mounts: All 1200 mount models (DA, QMD, SMD and GTO) that have been produced.
Note: This Heavy Duty Azimuth Adjuster Upgrade is now included on all new 1200GTO Mounts and does not need to be added to a new 1200GTO purchase.
You may wish to consider purchasing a taller Azimuth Adjuster Block (M12020-A) for your older 1200 Standard Pier Adapter since this unit sits higher than the original azimuth adjusters.
