Pegasus Astro FlatMaster 250 - Dimmable Flat Panel

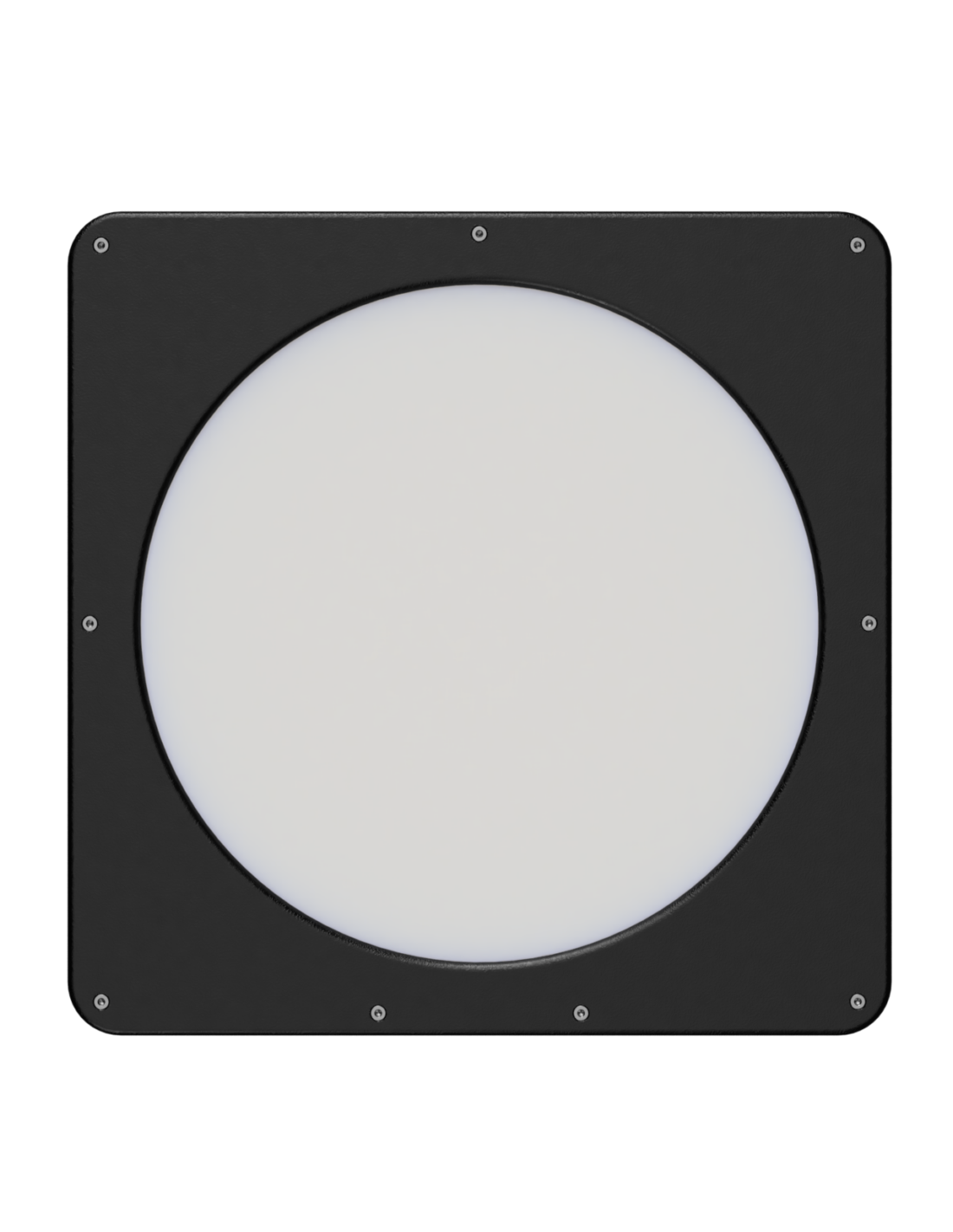

This FlatMaster 250 is the bigger flatfield electroluminescent panel from Pegasus Astro. It provides a uniform source of illumination for up to a 9-inch aperture telescope. It produces high quality flat-field frames for astrophotography and photometric captures.

Dimmable EL Panel

Unlike other EL (illumination) panels in the market, the FlatMaster can easily adjust its brightness. You can forget sheets of paper between your telescope and the panel. Now your can remotely control the EL lamp of your panel. Store the brightness per filter and immediately retrieve the value as needed.

Manual Button

This device has a small push button which sets five (5) levels of brightness. In case you would like to manually operate the FlatMaster, just click the push button to control the brightness.

One cable operation

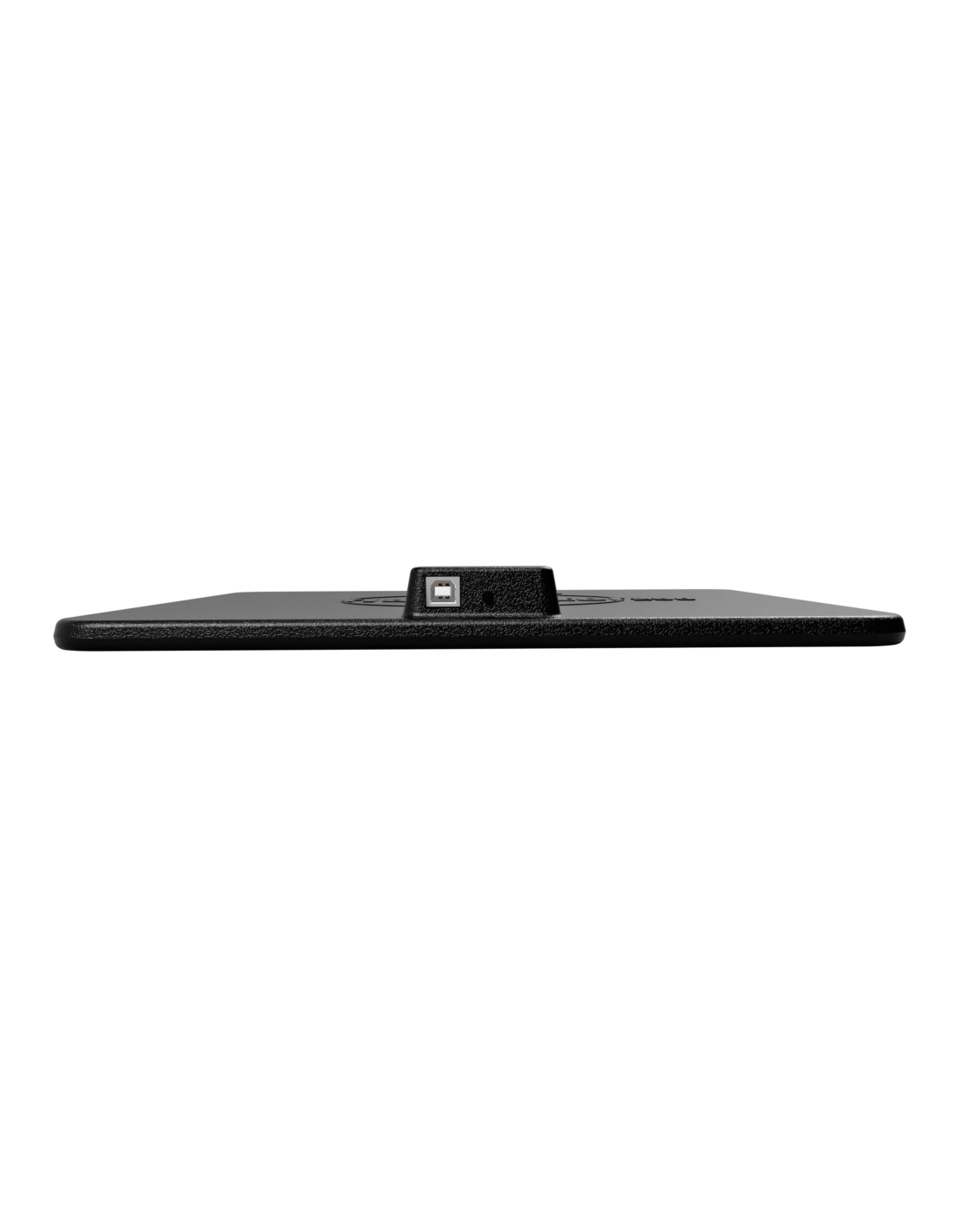

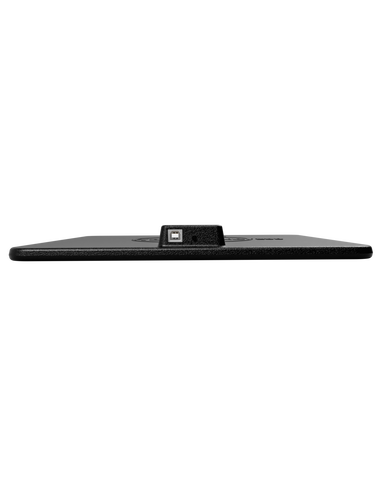

There is only one USB2 type B cable required for use. This cable provides power and control of your panel.

Standalone Software

Software allows you to set filter names and store / retrieve brightness levels of your FlatMaster panel.

Native support by the most popular imaging software

Technical Specifications:

• Type: Electroluminescent Panel (White)
• Dimmable: Yes -(0 to 100%).
• Manual Push Button: 5 brightness levels.
• Power requirements: 5V DC provided by USB type B cable.
• Size: 320 mm.
• Weight: 350g.

Included items

• A flatfield electroluminescent panel for a uniform illumination of flat-frames. Produces high quality flatfield frames for astrophotography and photometric captures.
• The panel will fit up to a 9-inch aperture telescope.
• Can be run from your device, or manually with a push-button and five brightness settings.
