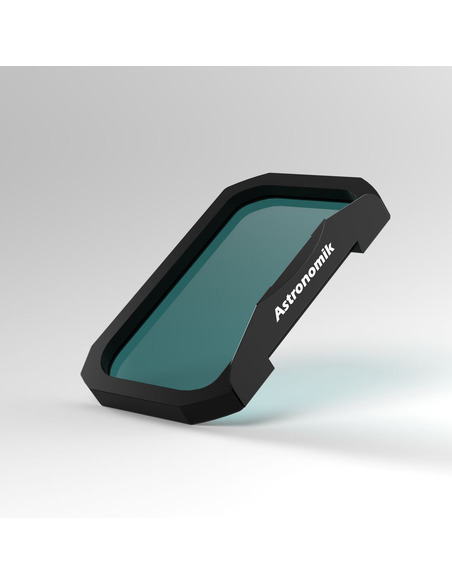

Astronomik UHC Clip-Filter Pentax K-1

Clip Filter for Pentax K1 and K1 MkII

We are proud to unveil a new member of the Clip-Filter-Family: Clip Filters for Pentax K1 and K1 MkII cameras:

The Clip-Filter are designed and optimized to be used with normal lenses and with telescopes as well.

Compatibility:

• The Clip-Filter are sucessfully tested with Pentax K1 and K1 MkII bodies

A short guide selecting the right filter for you:
Lot´s of customers are overwhelmed by the vast number of filters offered by Astronomik. Due to that we give you a short guide how to select the right filter for your application below.

Our normal recommendation for the "First Filter" is the Astronomik CLS filter. The CLS blocks all unwanted artifical light pollution and natural airglow and gives you a dark background in your images. When using this filter you may expose much longer than without, so you will be able to pick much fainter structures and objects. The filter is designed in such a way that all objects are given in their natural colors. -They would look the same if your human eye would be much more sensitive!
Important: The standard CLS has no built-in IR-blocker. In case your camera has been modified for Astrophotography, please take the CLS-CCD which has a built-in IR-blocker!

The CLS is the fist choice for any applications like Night-scape photography and Time Lapse movies!

If you have to work under a heavy light polluted sky, the UHC is a good choice too: It´s transmission curve is very tight. It gives you the light from the Hß, OIII, H-alpha and SII lines in one single exposure. The reduction of light pollution is much stronger than the CLS/CLS-CCD, but the filter will work for gas nebulas only! Any galaxies and open or globular clusters are filtered out! You will get "false colors" with the UHC, no natural colors like the CLS/CLS-CCD.

If you want to die deeper into Astrophotography with your Sony, you should think about a set of emission line filters centered on OIII, H-alpha and SII. All three are available either with 12nm or 6nm bandwidth. With these filters you can do ultra-deep images even under the worst sky you can imagine plus the full moon high up in the sky! Imaging possibilties are nearly unlimited with these filters!
The emission line filters isolate the light from a very tight range of wavelengths. So you don´t get any color information! if you want to create color images (false color like images from the HST), you will need all three filters to mix the three channels into a final color image.
However the H-alpha filter is a great using it alone: Data can be processed to splendid greyscale images!

If you own a modified camera, you should consider the OWB filter: OWB is short for "Original white Balance", and that´s what the filter does: It gives you back the normal color reproduction from a un-modified camera. When using the OWB you may use your modified camera for normal daylight-photography again, without the need for color-correcting each image afterwards!

The Astronomik UHC is THE filter for visual observing.

You will enjoy using your Astronomik UHC filter because you will see more stars and more details in deep-sky-objects compared to using filters from all other manufacturers.

The Astronomik UHC (Ultra High Contrast) filter allows the transmission of nearly 100% of the radiation from both O-III and the H beta lines. Though the second window for the H-alpha-line is not intended for visual observing, it is important, if the filter is used with an electronic device. All annoying, scattered light from other wavelength sources, including local artificial light pollution, is reliably filtered out. With this strong blocking of the sky background an unexpected wealth of detail becomes visible for gas nebulae and planetary nebulae.

Main use

Astronomik UHC filters astounding high light transmission brings better views of deep-sky-objects even to small telescopes! The high transmission of our optical glass filters means that enough light is available to allow successful visual observations with telescopes beginning at 2" (50mm) aperture. Our Astronomik filters are optimized for use with telescope focal length f / ratios of f/4 to f/15. Transmission losses and chromatic distortions, which arise with other filters, only occur with Astronomik filters when extremely bright aperture ratios of 1:2 and more come into play. Another major advantage of our Astronomik UHC filter is the high optical quality of the filter glass. When using Astronomik UHC filters you will quickly notice the same needle-sharp stars which you are familiar with from your astronomical instrument without any filter!

Suitability

• Visual observation (dark skies): Very good, for telescopes of all apertures and high exit pupil
• Visual observation (urban skies): Very good, for telescops from 100 mm aperture
• Film photography: Reasonable, but very long exposure time
• CCD photography: Good, when used with an additional IR-block-filter
• DSLR photography (original): Good, colour balance shifted but contrast enhanced
• DSLR photography (astro modified): Very good, colour balance is near perfect
• DSLR photography (MC modified): Good, when used with an additional IR-block-filter
• Webcam / Video (Planets): Unsuitable
• Webcam / Video (Deep Sky): Good, if light pollution is a big problem

Technical Data

• typ. 97% transmission at 486nm (H-beta)
• typ. 97% transmission at 496nm (OIII)
• typ. 97% transmission at 501nm (OIII)
• typ. 97% transmission at 656nm (H alpha)
• optimum position of transmission for telescopes with focal ratios from f/10 to f/3,5
• Entire Blocking of annoying wavelengths
• Ideal All-round Deep Sky filter even for small telescopes
• Not sensitive to humidity or aging
• Scratch-resistant!
• Excellent carrier material. The optical performance of your telescope is not reduced by the filter in any way.
• Parfocal with other Astronomik filters
• Glass thickness: 1mm
• Completely resistant against high humidity, scratches and aging effects
• Diffraction limited, the filter will not reduce the optical performance of your telescope!
• Astronomik filters are delivered in a high-quality, long lasting, filter box
