THE NEW MODULAR REPORT TRIPOD SYSTEM

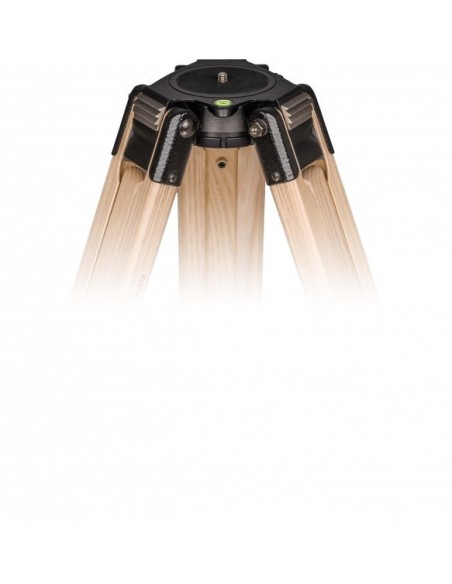

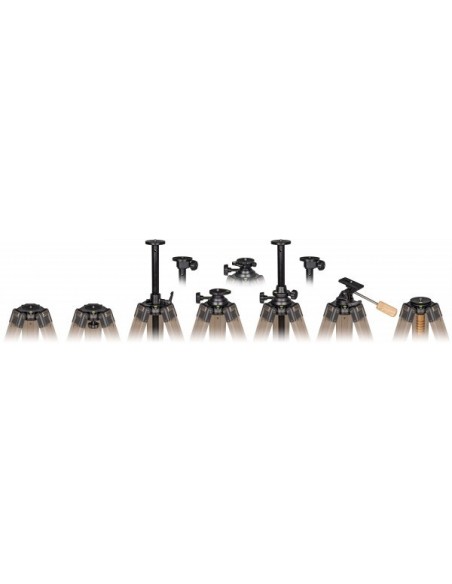

The light magnesium mounting head serves as module basis for 10 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module) . The fixation in the cone ensures a positive-locking, clearance-free connection of the components.

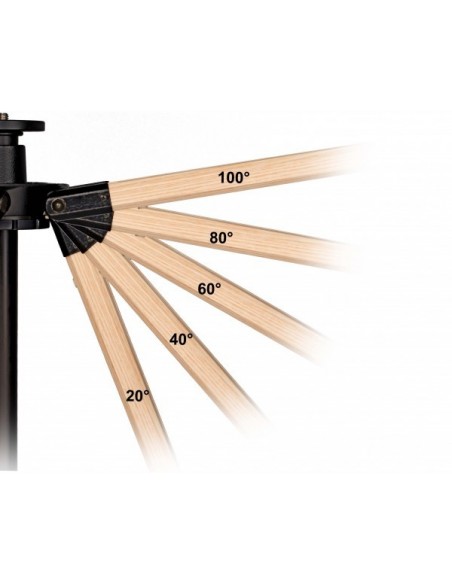

Thanks to the new stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.

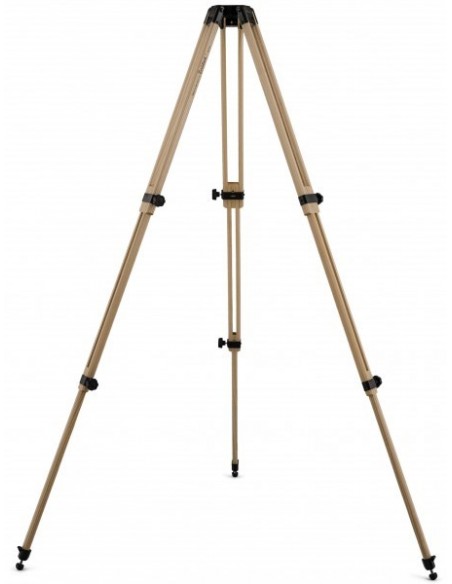

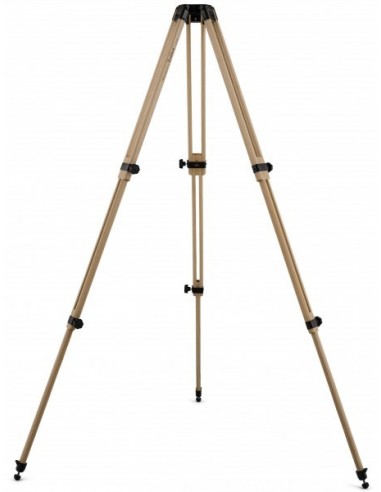

The tripod Report 903 is equipped with the module insert 0 and is thus the simplest and cheapest tripod version.
The support area has a diameter of 60mm and is equipped with a fixed fastening screw (size to be selected) .
In combination with our tripod heads, it can be used for various applications and is particularly suitable for near-ground-level work.
Double tripod leg extension.
- Weight: 2,60 kg = 5,73 lb.
- Transportation length: 71cm = 28 inch
- Minimum height: 4cm = 2 inch
- Maximum height: 154cm = 61 inch
- Load capacity: 8.00 kg = 17,64 lb.
- Vibration damping: good
