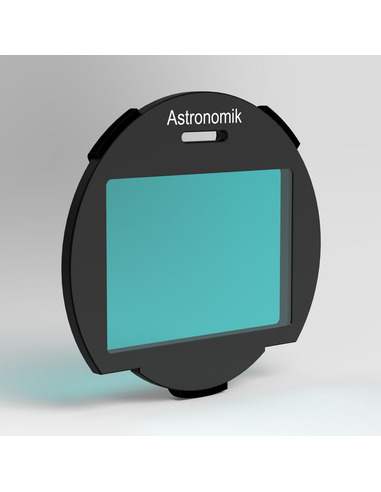

Astronomik CLS Clip-Filter EOS R XL

Clip-Filters for mirrorless Canon Full-Format Cameras EOS R and RP

These Clip-Filters can be installed with your fingers only. Mounting and removing the Clip-Filter is quick and easy. It can be done at any time. No modifiations to the body are necessary to use the Clip-Filters.*

Compatible Canon EOS Bodies

Note: These Clip filters are NOT compatible with this lens: Canon RF 35mm f/1.8 IS MACRO

If you are new to astrophotography and looking for your first filter: We do recommend getting the Astronomik CLS!
The CLS gives you maximum contrast due to it effective surpression of artifical light pollution, but still gives you neutral and well balanced colors. With the Astronomik CLS you can do very deep images of amazing quality even form a urben/suburban observing site!
For the advanced Astrophotographer we do offer a wide selection of filters: Perfect accessories for all kinds of astrophotography. To compile a usefull selection of filters for your obeserving goals we would be happy to give you advise, either via phone or eMail.

The full range of Astronomik filters is available as Clip-Filters for EOS R and EOS RP bodies now.

* You might want to modify your camera to get a maximum sensetivity at H-alpha and SII for Astrophotography. But this has nothing to do with the Clip-Filters! You may use the Clip-Filters without any modifications to the body. (But some filters like H-alpha and SII-CCD might not make sense with an unmodified camera.)

Please note that Canons Astro-Version "Ra" of the R-body shows strong halos around brighter stars! (Even without any filter) We highly recommend NOT to get a Ra!

Mounting the Astronomik EOS R Clip-Filter:

Mounting the Astronomik EOS R Clip Filter is very easy: You don't need any tools and filters may be changed even at night without any problems.
Remove the lens and take the Clip Filter from it? box. Slide the Clip-Filter into the body and press it in with two fingers, until it rests flush. Re-install the lens. -Your camera is ready for imaging!

Removing the Astronomik EOS R Clip-Filter:

Removing the Astronomik EOS R Clip-Filter is very simple too: Pull the filter out with the supplied tool, get the filter with two fingers and put it into it´s storage box. -Done within seconds and the camera is working as before.

The Astronomik CLS is a budget filter for visual observation, Black & White photography and CCD photographs of nebulae, galaxies and star clusters with astronomical instruments of any size.

The Astronomik CLS blocks the light of the spectral lines of mercury and sodium-vapor lamps and lets the largest part of the visible light and H-alpha emissions pass. All the important emission lines, as well as the spectral region that the very well dark adapted eye can see, can pass through the filter.

Main use

The filters are optimized for use with aperture ratios from 1:3 to 1:15. Transmission losses and chromatic distortions, which are problems with other filters, only appear with Astronomik filters when extremely bright aperture ratios of 1:2 and more are used. The CLS filter is suitable for use with telescopes of all aperture sizes.

Suitability

• Visual observation (dark skies): Good, to reduce light pollution by mercury-vapour lamps (streetlight)
• Visual observation (urban skies): Good, an UHC-E or UHC filter is more suitable
• Film photography: Very good, colour balance is near perfect
• CCD photography: Good, when used with an additional IR-block-filter
• DSLR photography (original): Good, colour balance shifted but contrast enhanced
• DSLR photography (astro modified): Very good, colour balance is near perfect
• DSLR photography (MC modified): Good, when used with an additional IR-block-filter
• Webcam / Video (Planets): Unsuitable
• Webcam / Video (Deep Sky): Very good, if light pollution is a big problem

Technical Data

• 92% transmission at 486nm (H-beta)
• 92% transmission at 496nm (OIII)
• 92% transmission at 501nm (OIII)
• 97% transmission at 656nm (H alpha)
• pass from 450 to 540nm and beyond 650nm
• Parfocal with other Astronomik filters
• Glass thickness: 1mm
• Completely resistant against high humidity, scratches and aging effects
• Diffraction limited, the filter will not reduce the optical performance of your telescope!
• Astronomik filters are delivered in a high-quality, long lasting, filter box
• Since 2008 we do ship filters with a completely new design. Any kind of halo or strange reflection is a matter of past
