Moonlite 2 inch C S SCT/ACF stepper motor focuser no controller

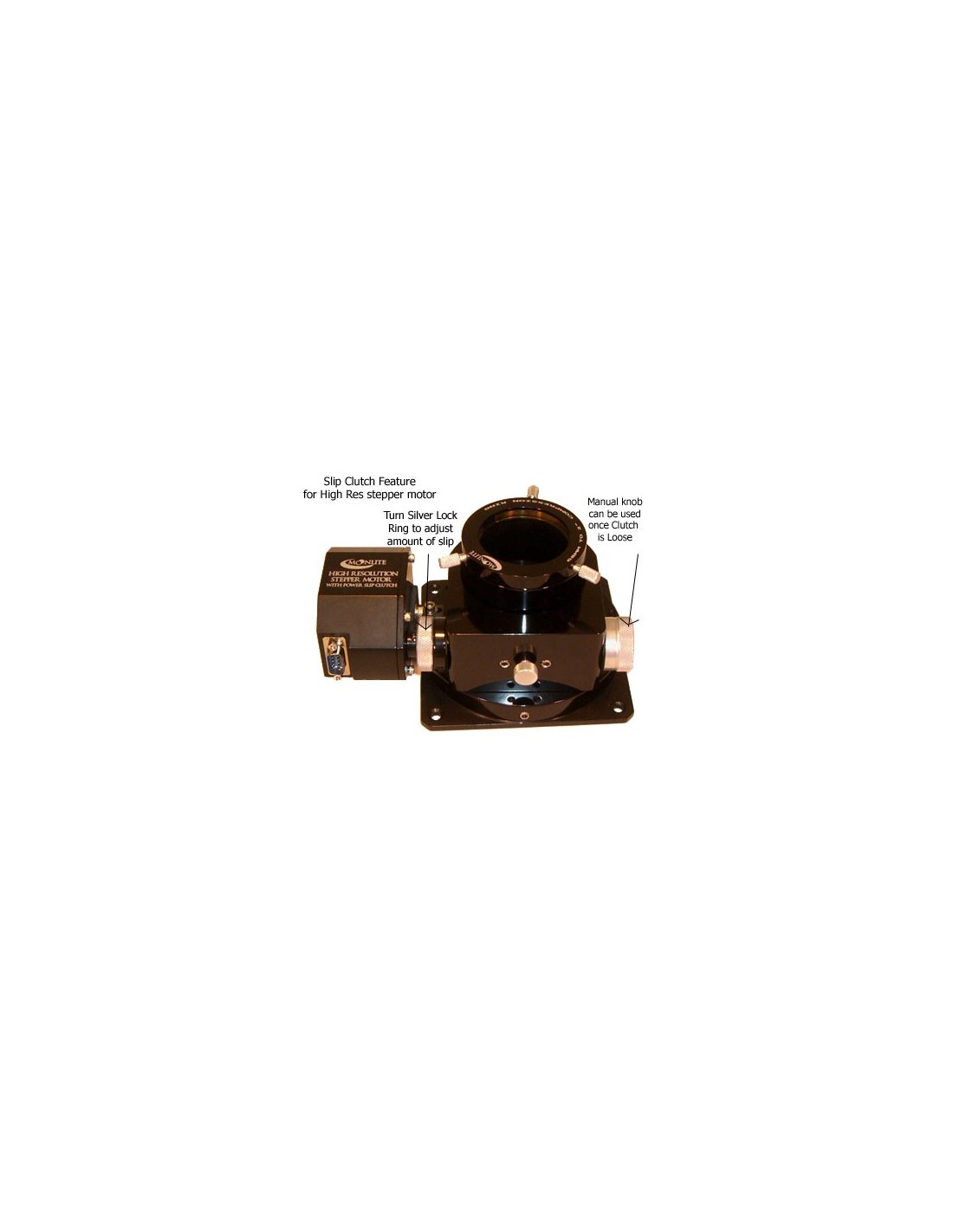

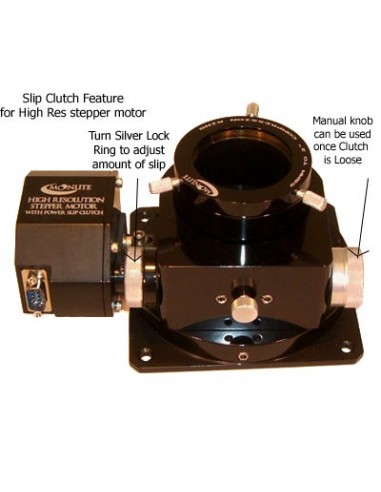

High Resolution Stepper Motor/stand alone for customers that may all ready have a stepper motor controller. – The high resolution stepper motor option provides extremely fine .00008" focus resolution. The motor provides an 7 lb. load capacity once installed on a CS focuser. It gives the focuser great repeatability and automated focus ability for today's imaging requirements when using a PC. The high resolution stepper motor's slip clutch feature allows both manual operation using the focusers knobs and electronic PC control at the same time. The stepper motor follows the 9 pin DBA standard pin out so it will work with ROBO focus (pin for pin) controllers along with many other brand controllers. We offer two different controllers if you do not have a controller

CS focuser with High Resolution Stepper Motor/stand alone motor -- Is for customers that may all ready have a stepper motor controller. – The high resolution stepper motor option provides extremely fine .00008" 1/2 step or .00016" per full step focus resolution. The motor provides an 7 lb. load capacity once installed on a CS focuser. It gives the focuser a high level of focus resolution and automated focus ability for todays imaging requirements when using a PC. The high resolution stepper motors slip clutch feature allows both manual operation using the focusers knobs and electronic PC control at the same time. The stepper motor follows the 9 pin DBA standard pin out so it will work with ROBO focus (pin for pin) controllers along with many other brand controllers. We offer two different controllers below if you do not have a controller. Please see Motor options for more details: Motor Focus Options Please note that a controller is always needed to run a stepper motor, it can not plug directly in to a PC. Please see Motor options for more details:
