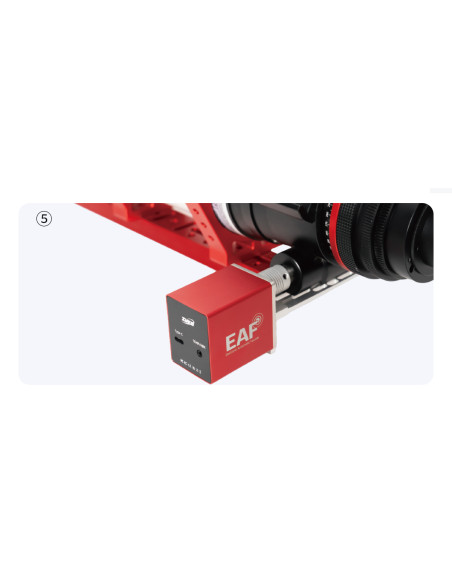

ZWO EAF Electronic Automatic Focuser (2025 EAFN model with USB-C)

ZWO EAF Electronic Automatic Focuser (2025 EAFN model with USB-C)

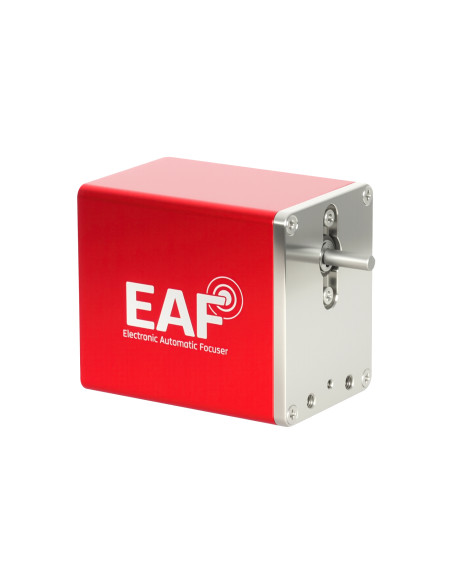

ZWO EAF (Electronic Automatic Focuser) is an updated version of the popular focuser drive, presented in June 2025. The new generation introduces USB-C communication and an improved design made of durable metal, while maintaining compact dimensions and high driving force. ZWO EAF is designed for remote and precise focusing in telescopes - both for astrophotography and visual observations. It works with a wide range of focusers and software, enabling automatic focusing, temperature compensation and manual control.

Key Features

• Eliminating vibrations during focusing
• Updated version from June 2025

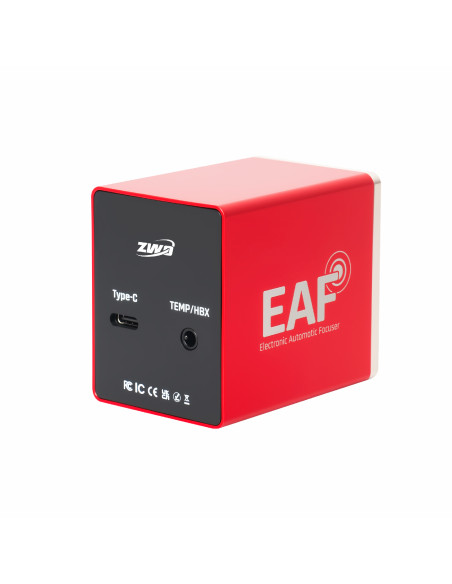

• Modern USB-C connector for power and communication
• Compact, highly durable metal housing
• Load capacity up to 5 kg confirmed in ZWO tests
• Compatible with ASIAIR, ZWO cameras, PC/Mac
• ASCOM and INDI compatible
• Extensive software support: ASIStudio, ASIAIR, SharpCap, SGP, Maxim DL, TheSkyX, FireCapture, Nebulosity, FocusMax and many others
• Manually controllable with optional EAF-HC controller
• Support for external EAF-Sensor temperature sensor
• Universal adapter bracket included for easy installation on most focusers. Optional specific adapters available

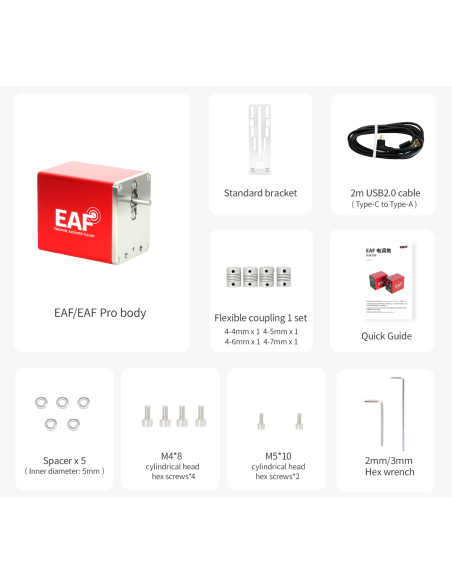

What's in the Box

• ZWO EAF drive (EAFN - 2025 version)
• Flexible clutch
• Mounting bracket (with mounting groove)
• Set of M4 screws
• 2mm Allen key
• USB-C cable
• Assembly instructions

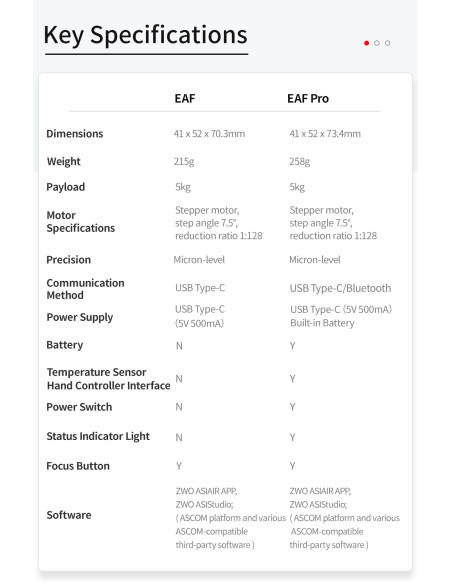

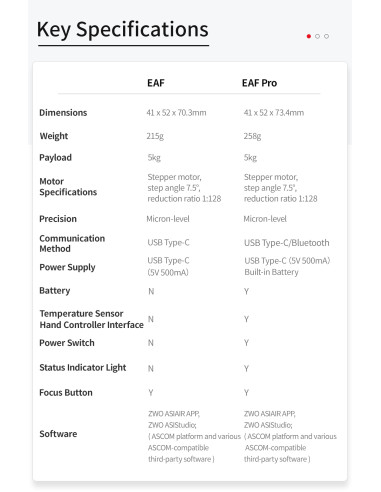

Specifications

• Maximum load: 5 kg
• Power supply: 5V / 2.0A (via USB-C)
• Communication connector: USB-C
• Control interface: ASCOM, INDI
• Compatibility: Windows, macOS, ASIAIR, Android (via ASIAIR), iOS (via ASIAIR)
• Weight: 277 g

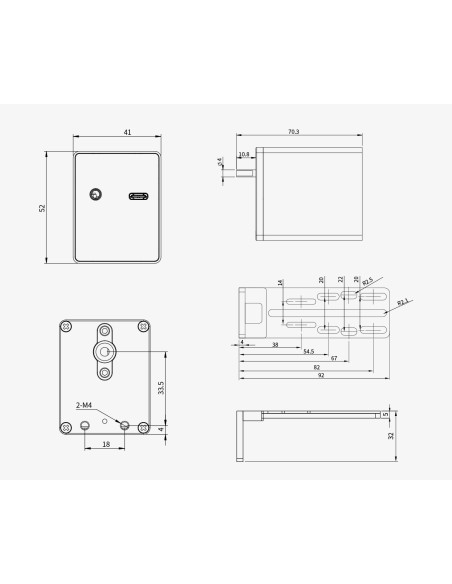

• Dimensions: 59 × 52 × 41 mm
• Temperature sensor connector: 2-pin
• Handheld Controller Jack: 3.5mm Jack

Technical Note: New ZWO EAF/EAF Pro Release

• Powered by ASIAIR: The USB-C port on ASIAIR does not provide power, only data - please use a USB-B to USB-C cable to ensure proper power supply
• New standard of the coupling sleeve: the diameter has been changed from 5 mm to 4 mm due to the modernization of the motors in the EAFN and EAF Pro drives
• Compatibility: the new version does not fully support the 5mm sleeve - for Takahashi, C8 and C11 telescopes, a 4mm sleeve should be used
• ZWO EAF-BRK-TK, ZWO EAF-C8-C925 and ZWO EAF-C11-C14 mounting kits will include 4 mm and 5 mm diameter sleeves
