Astro-Physics 9AZKIT Heavy-Duty Azimuth Adjuster Upgrade Kit 900 Mounts

Astro-Physics 9AZKIT Heavy-Duty Azimuth Adjuster Upgrade Kit for 900 Mounts

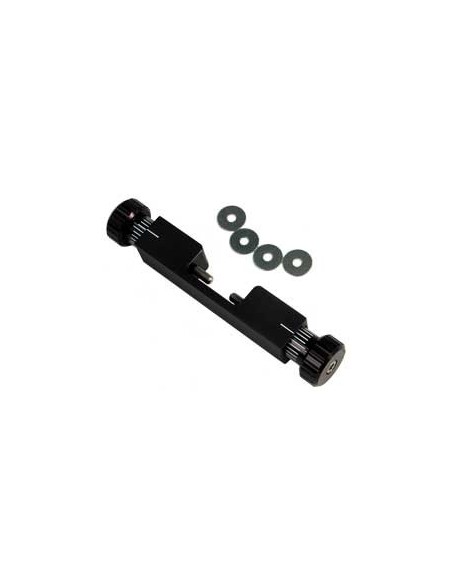

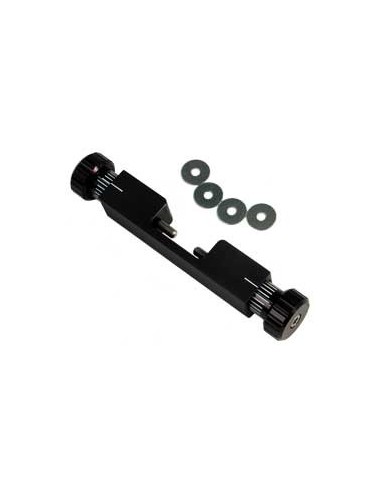

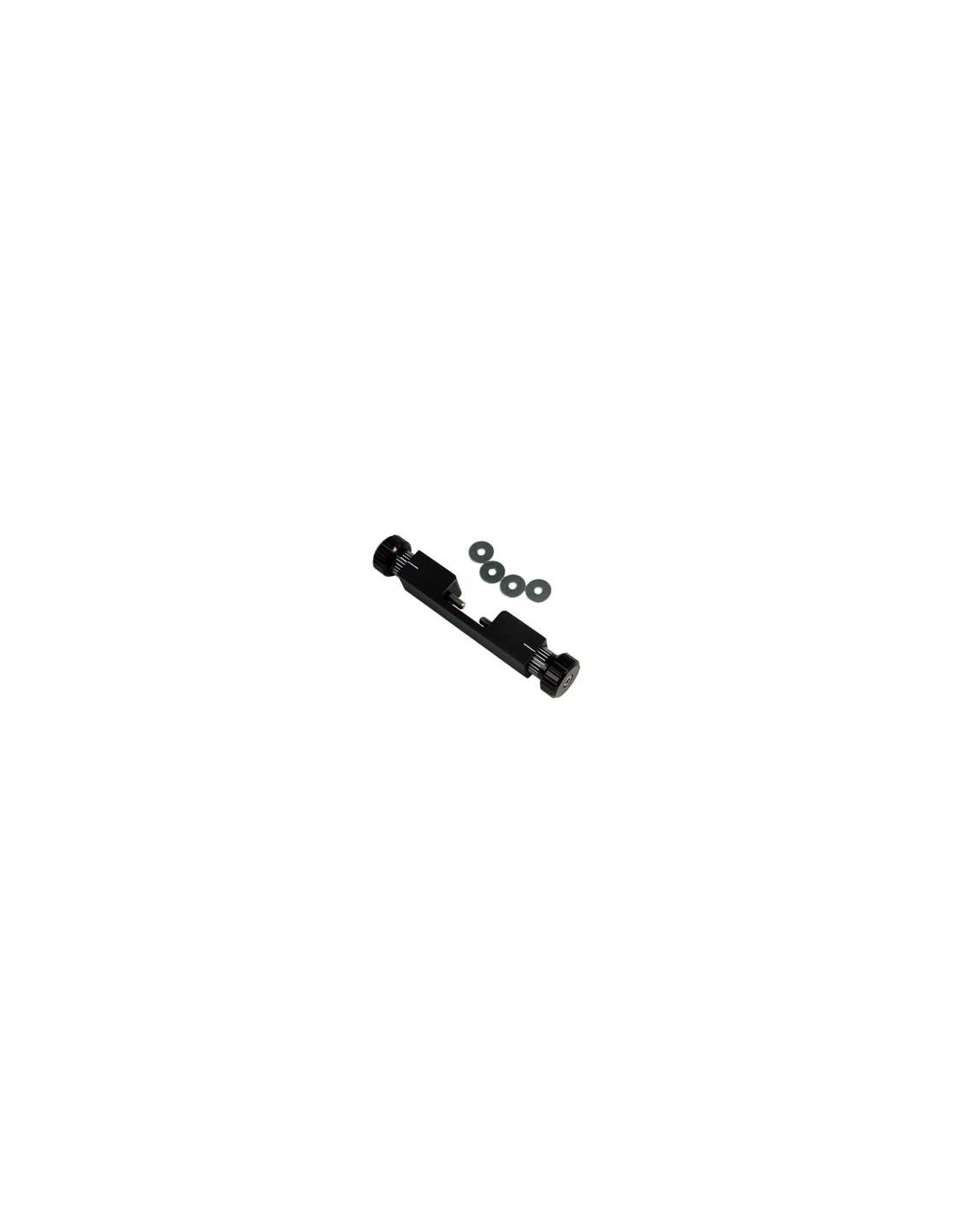

This one-piece assembly makes azimuth adjustment easier and more accurate for precise polar alignment in your observatory or in the field. The heavy-duty construction and integrated one-piece design results in smooth control of the azimuth axis. Large left and right adjuster knobs are graduated for precise control of azimuth position angle. The small graduations are 1.3 arc minutes per graduation; long graduations are 6.5 arc minutes per graduation. The size of the knobs makes them easy to turn with very little torque required, even with the mount fully loaded.

The kit includes a set of hardened washers for the four lock-down knobs. With these washers, the lock-down knobs can hold the mount down tight, while still allowing the axis to be easily adjusted with your fingers. This will eliminate minor shifts in the axis when you are tweaking your azimuth adjustment.
The adjuster block installs easily on your base plate using the existing hole pattern and screws. Simply remove the two existing adjuster blocks and replace them with the new unit. Place the four washers beneath the lock-down knobs. The washers have a sharp edged side and a rounded edge side. Place them with the sharp edge of the washers facing up toward the knob, rounded edge down onto the painted surface of the base plate. Complete instructions and tips for adjusting both the azimuth and altitude axes are included in the package. Installation takes only a few minutes, but will result in significantly easier setup the next time you are out under the stars.

Includes: Our part# S900AZA-B and four 1/4" ID x 1" OD washers.

Mounts: All 900 mount models (HDA, QMD, SMD and GTO) that have been produced. You may wish to consider purchasing a taller Azimuth Adjuster Block (M12020-A), if you use an older Standard Pier Adapter, since this unit sits higher than the original azimuth adjusters. New Standard Pier Adapters come with this taller block. The Precision-Adjust Rotating Pier Adapter already comes with the appropriate Azimuth Adjuster Block.
